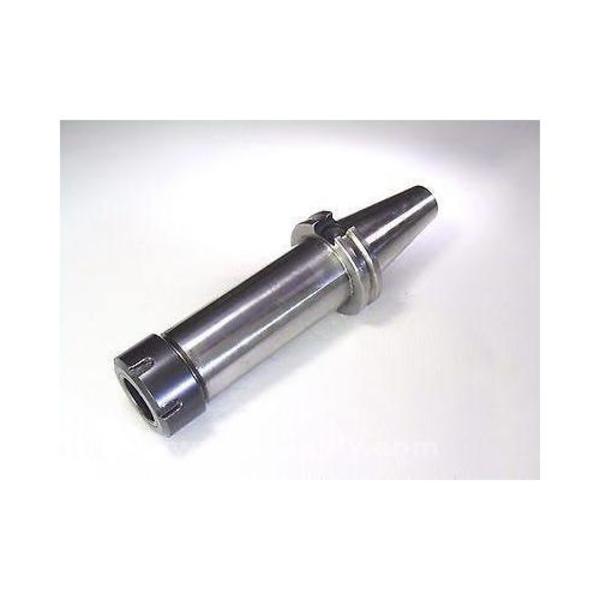

PARLEC C40BC-32ERP612 ER 32 CHK POWER X 6.12" BLNCD CAT40 AD/B
Starting At: $311.60
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40BC-32ERP612
IMS Product Code: 1740727
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER32
Taper Size: CAT40
Shank Type: Taper Shank
Projection (Decimal Inch): 6.1200
Minimum Collet Capacity (Decimal Inch): 0.0787
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 20.00
Maximum Collet Capacity (Decimal Inch): 0.7874
Overall Length (Decimal Inch): 8.8100
Actuator Type: Wrench
Type: ER Coolant Collet
Nose Diameter (Decimal Inch): 1.9700
Balanced to (RPM): 25000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle & DIN Flange
Collet Nut Diameter (Decimal Inch): 1.9700
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
