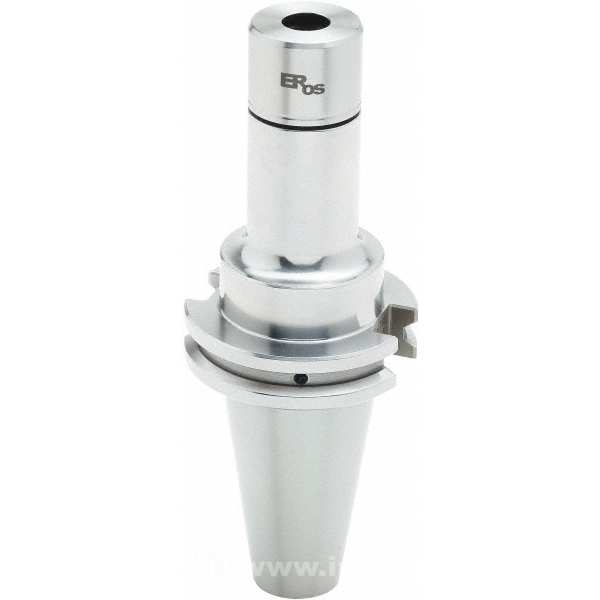

PARLEC C40BC-16EROS400 EROS PRECISION CHUCK, CAT 40 AD/B, 16 X
Starting At: $308.75
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40BC-16EROS400
IMS Product Code: 1746031
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ERos16
Taper Size: CAT40
Shank Type: Taper Shank
Shank Diameter (Inch): 13/32
Projection (Decimal Inch): 4.0000
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0400
Minimum Collet Capacity (mm): 0.50
Maximum Collet Capacity (mm): 10.00
Maximum Collet Capacity (Decimal Inch): 0.4060
Nut Tightening Torque (Ft-Lbs): 52.000
Maximum RPM: 20000
Collet Series: ER16
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle & DIN Flange
