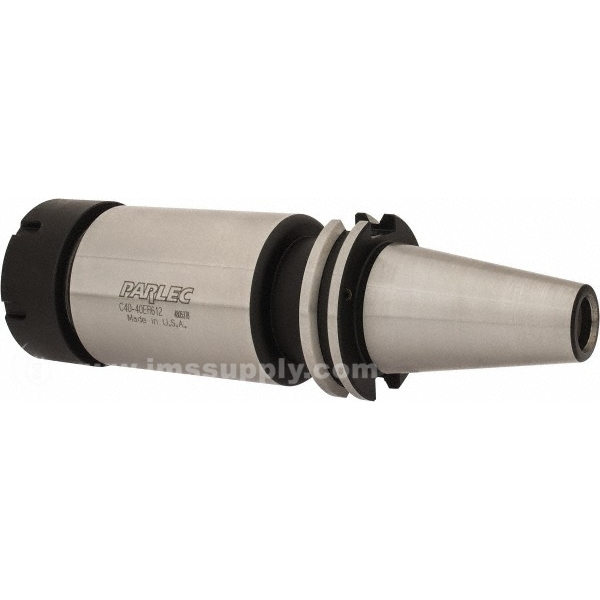

PARLEC C40-40ERP612 ER 40 CHK POWER X 6.12" BALANCED CAT40
Starting At: $259.35
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40-40ERP612
IMS Product Code: 1741099
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER40
Taper Size: CAT40
Shank Type: Taper Shank
Projection (Decimal Inch): 6.1200
Minimum Collet Capacity (Decimal Inch): 0.1181
Minimum Collet Capacity (mm): 3.00
Maximum Collet Capacity (mm): 30.00
Maximum Collet Capacity (Decimal Inch): 1.1811
Overall Length (Decimal Inch): 8.8100
Actuator Type: Wrench
Type: ER Coolant Collet
Nose Diameter (Decimal Inch): 2.4700
Balanced to (RPM): 25000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
Collet Nut Diameter (Decimal Inch): 2.4700
