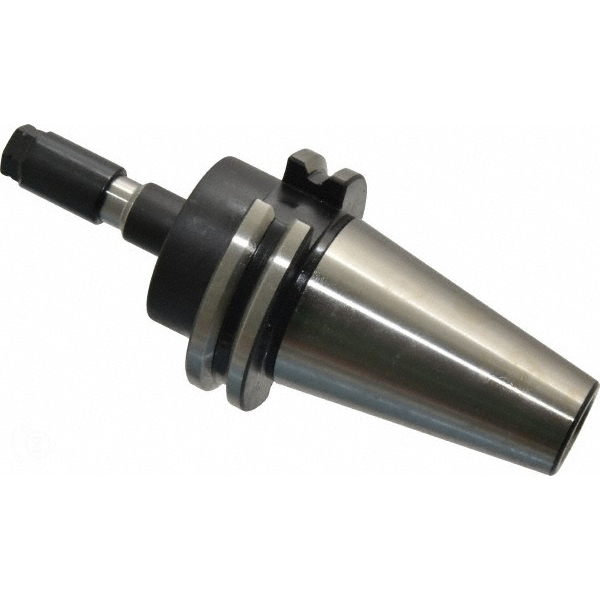

PARLEC C40-30DC3 DA300 CHK X 3.38" CAT40
Starting At: $211.85
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40-30DC3
IMS Product Code: 1740415
Packaging: Sold Individually
Description:
Collet System: Double Angle
Collet Series: DA300
Taper Size: CAT40
Shank Type: Taper Shank
Projection (Decimal Inch): 3.3800
Minimum Collet Capacity (Inch): 1/32
Minimum Collet Capacity (Decimal Inch): 0.0313
Minimum Collet Capacity (mm): 0.79
Maximum Collet Capacity (mm): 6.35
Maximum Collet Capacity (Inch): 1/4
Maximum Collet Capacity (Decimal Inch): 0.2500
Overall Length (Decimal Inch): 6.0670
Nose Diameter (Decimal Inch): 0.6200
TIR (Decimal Inch): 0.0004
Coolant Type: Through-Spindle
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
