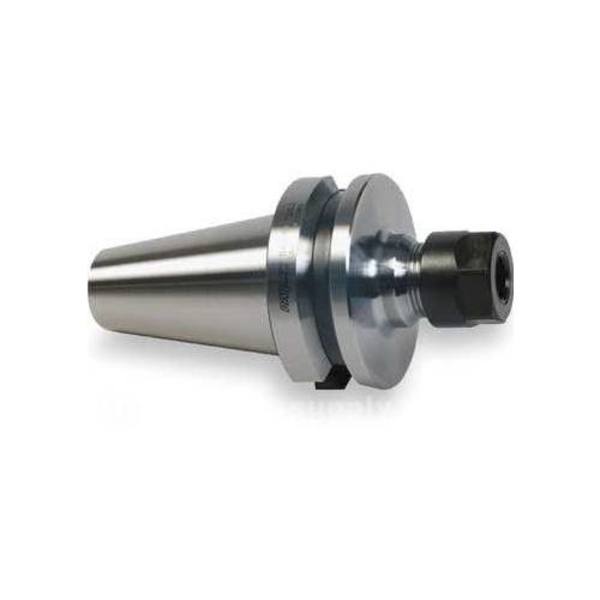

PARLEC C40-25ERF250 ER 25 CHK FLUSH X 2.50" BALANCED CAT40
Starting At: $200.45
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40-25ERF250
IMS Product Code: 1740410
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER25
Taper Size: CAT40
Shank Type: Taper Shank
Projection (Decimal Inch): 2.5000
Minimum Collet Capacity (Decimal Inch): 0.0394
Minimum Collet Capacity (mm): 1.00
Maximum Collet Capacity (mm): 16.00
Maximum Collet Capacity (Decimal Inch): 0.6299
Overall Length (Decimal Inch): 5.1900
Actuator Type: Wrench
Type: ER Coolant Collet
Nose Diameter (Decimal Inch): 1.6700
Balanced to (RPM): 25000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
Collet Nut Diameter (Decimal Inch): 1.6700
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
