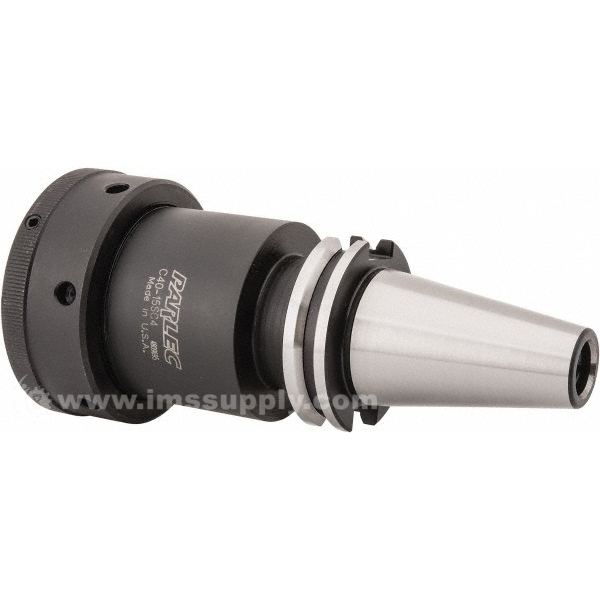

PARLEC C40-15SC4 PG150 CHK X 4.87" CAT40
Starting At: $342.95
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: C40-15SC4
IMS Product Code: 1741092
Packaging: Sold Individually
Description:
Collet System: Single Angle
Collet Series: TG/PG 150
Taper Size: CAT40
Shank Type: Taper Shank
Projection (Decimal Inch): 4.8800
Minimum Collet Capacity (Inch): 31/64
Minimum Collet Capacity (Decimal Inch): 0.4844
Minimum Collet Capacity (mm): 12.30
Maximum Collet Capacity (mm): 38.10
Maximum Collet Capacity (Inch): 1-1/2
Maximum Collet Capacity (Decimal Inch): 1.5000
Overall Length (Decimal Inch): 7.5670
Nose Diameter (Decimal Inch): 3.4300
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
