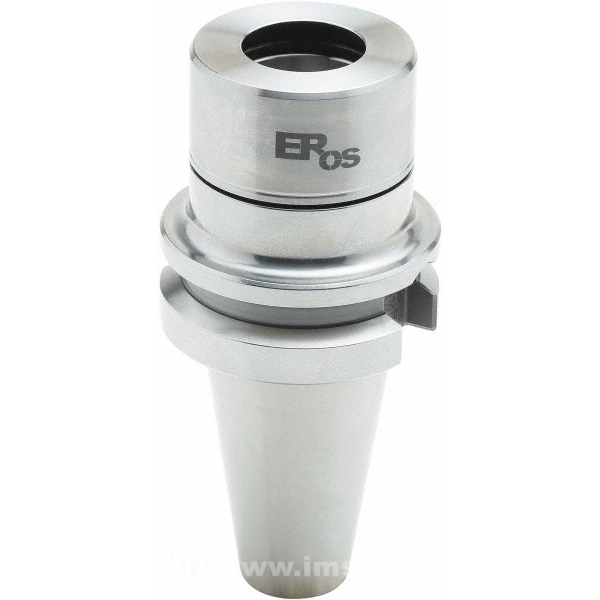

PARLEC BT40-40EROS394 EROS PRECISION CHUCK, BT 40 , 40 X 3.94
Starting At: $386.65
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: BT40-40EROS394
IMS Product Code: 1746962
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER40
Taper Size: BT40
Shank Type: Taper Shank
Shank Diameter (Inch): 1
Projection (Decimal Inch): 3.9400
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0860
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 30.00
Maximum Collet Capacity (Decimal Inch): 1.0000
Nut Tightening Torque (Ft-Lbs): 162.000
Maximum RPM: 15000
Collet Series: ER40
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle
