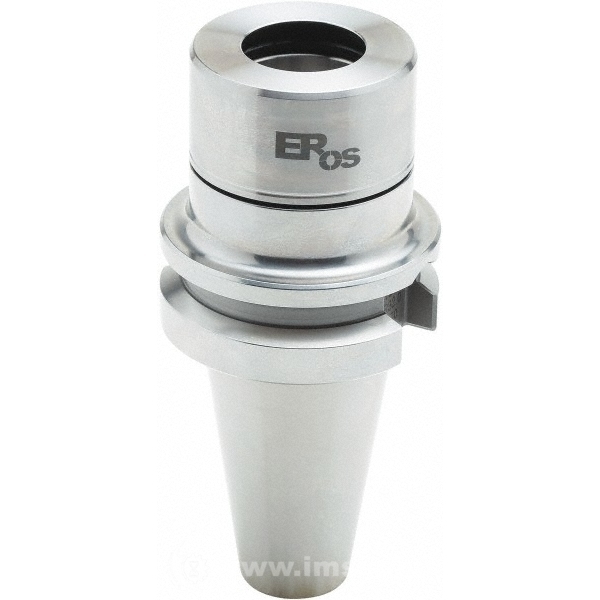

PARLEC BT30-32EROS354 EROS PRECISION CHUCK, BT 30, 32 X 3.54
Starting At: $288.80
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: BT30-32EROS354
IMS Product Code: 1745840
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER32
Taper Size: BT30
Shank Type: Taper Shank
Shank Diameter (Inch): 25/32
Projection (Decimal Inch): 3.5400
Through Coolant: Through Coolant
Minimum Collet Capacity (Decimal Inch): 0.0540
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 20.00
Maximum Collet Capacity (Decimal Inch): 0.7812
Nut Tightening Torque (Ft-Lbs): 125.000
Maximum RPM: 20000
Collet Series: ER32
TIR (Decimal Inch): 0.000040
Balanced to (RPM): 25000
Coolant Type: Through-Spindle
