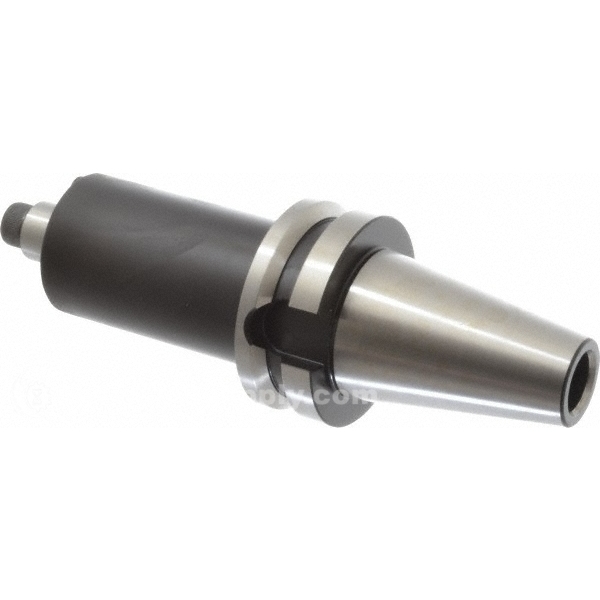

PARLEC B40BC-11ERF400 ER 11 CHK FLUSH X 4.00" BLCND BT40 AD/B
Starting At: $280.25
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: B40BC-11ERF400
IMS Product Code: 1741081
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER11
Taper Size: BT40
Shank Type: Taper Shank
Projection (Decimal Inch): 4.0000
Minimum Collet Capacity (Decimal Inch): 0.0197
Minimum Collet Capacity (mm): 0.50
Maximum Collet Capacity (mm): 7.00
Maximum Collet Capacity (Decimal Inch): 0.2756
Overall Length (Decimal Inch): 6.5800
Actuator Type: Wrench
Type: ER Coolant Collet
Nose Diameter (Decimal Inch): 0.7500
Balanced to (RPM): 25000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle & DIN Flange
Collet Nut Diameter (Decimal Inch): 0.7500
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
