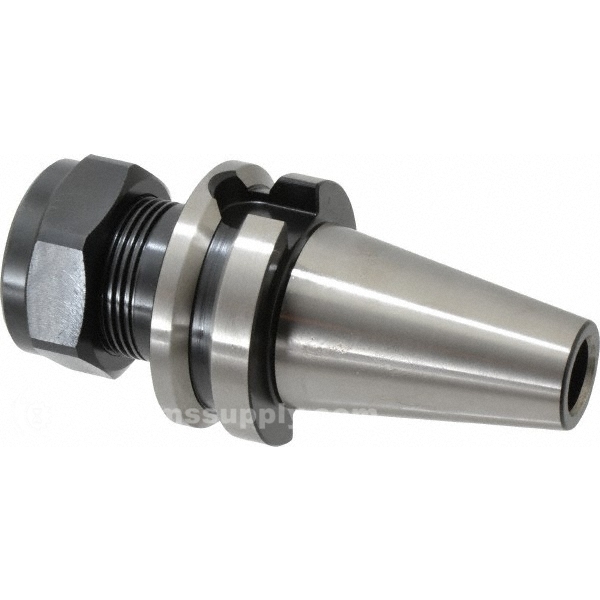

PARLEC B40-75SC3 PG75 CHK X 2.75" BT40
Starting At: $220.40
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: B40-75SC3
IMS Product Code: 1740570
Packaging: Sold Individually
Description:
Collet System: Single Angle
Collet Series: TG/PG 75
Taper Size: BT40
Shank Type: Taper Shank
Projection (Decimal Inch): 2.7500
Minimum Collet Capacity (Decimal Inch): 0.0310
Minimum Collet Capacity (mm): 0.79
Maximum Collet Capacity (mm): 19.05
Maximum Collet Capacity (Inch): 3/4
Maximum Collet Capacity (Decimal Inch): 0.7500
Overall Length (Decimal Inch): 5.3250
Nose Diameter (Decimal Inch): 2.1000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
