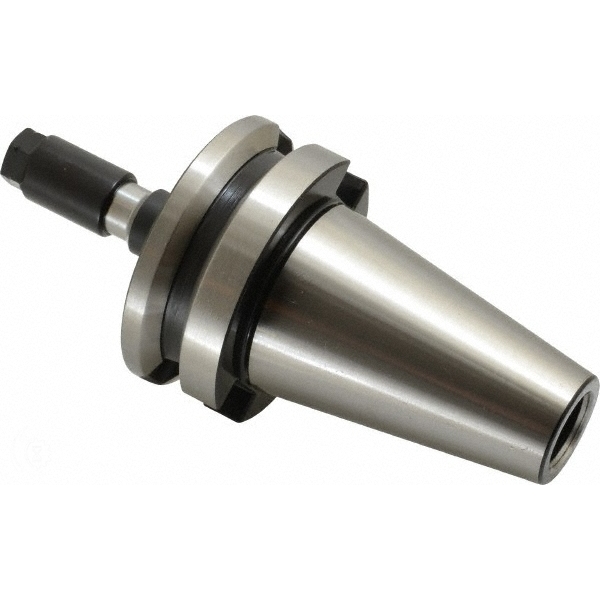

PARLEC B40-30DC3 DA300 CHK X 3.00" BT40
Starting At: $215.65
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: B40-30DC3
IMS Product Code: 1741077
Packaging: Sold Individually
Description:
Collet System: Double Angle
Collet Series: DA300
Taper Size: BT40
Shank Type: Taper Shank
Projection (Decimal Inch): 3.0000
Minimum Collet Capacity (Inch): 1/32
Minimum Collet Capacity (Decimal Inch): 0.0313
Minimum Collet Capacity (mm): 0.79
Maximum Collet Capacity (mm): 6.35
Maximum Collet Capacity (Inch): 1/4
Maximum Collet Capacity (Decimal Inch): 0.2500
Overall Length (Decimal Inch): 5.5750
Nose Diameter (Decimal Inch): 0.6200
TIR (Decimal Inch): 0.0004
Coolant Type: Through-Spindle
