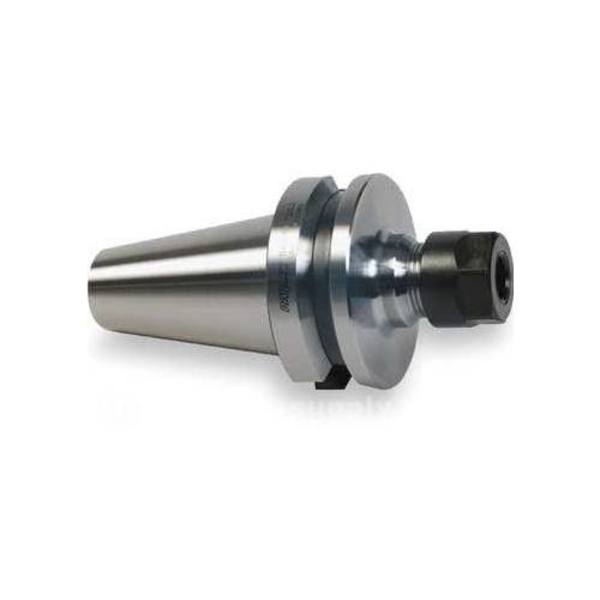

PARLEC B40-20ERF400 ER 20 CHK FLUSH X 4.00" BALANCED BT40
Starting At: $195.70
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: B40-20ERF400
IMS Product Code: 1740544
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER20
Taper Size: BT40
Shank Type: Taper Shank
Projection (Decimal Inch): 4.0000
Minimum Collet Capacity (Decimal Inch): 0.0394
Minimum Collet Capacity (mm): 1.00
Maximum Collet Capacity (mm): 13.00
Maximum Collet Capacity (Decimal Inch): 0.5118
Overall Length (Decimal Inch): 6.5800
Actuator Type: Wrench
Type: ER Coolant Collet
Nose Diameter (Decimal Inch): 1.3400
Balanced to (RPM): 25000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
Collet Nut Diameter (Decimal Inch): 1.3400
