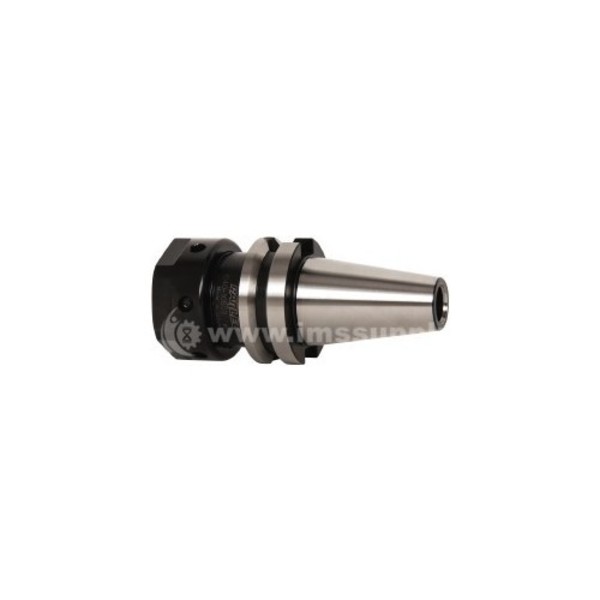

PARLEC B40-10SC3 PG100 CHK X 3.00" BT40
Starting At: $215.65
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: B40-10SC3
IMS Product Code: 1741067
Packaging: Sold Individually
Description:
Collet System: Single Angle
Collet Series: TG/PG 100
Taper Size: BT40
Shank Type: Taper Shank
Projection (Decimal Inch): 3.0000
Minimum Collet Capacity (Decimal Inch): 0.0310
Minimum Collet Capacity (mm): 0.79
Maximum Collet Capacity (mm): 25.40
Maximum Collet Capacity (Inch): 1
Maximum Collet Capacity (Decimal Inch): 1.0000
Overall Length (Decimal Inch): 5.5750
Nose Diameter (Decimal Inch): 2.4400
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
