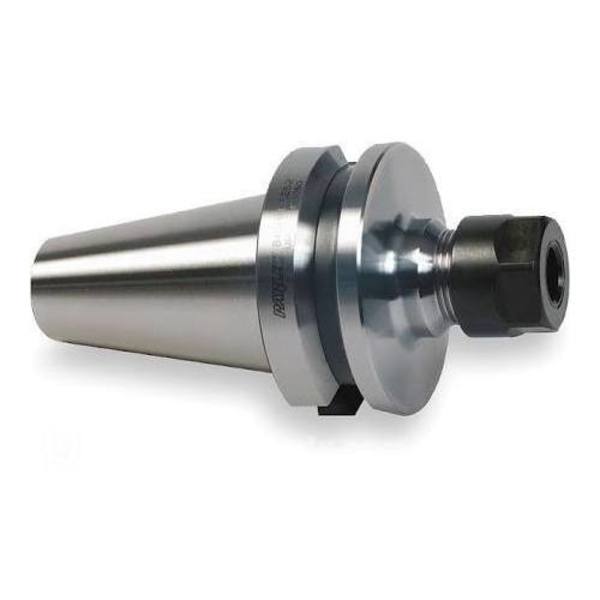

PARLEC B30-32ERF236 ER 32 CHK FLUSH X 2.36" BALANCED BT30
Starting At: $176.70
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: B30-32ERF236
IMS Product Code: 1740513
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER32
Taper Size: BT30
Shank Type: Taper Shank
Projection (Decimal Inch): 2.3600
Minimum Collet Capacity (Decimal Inch): 0.0787
Minimum Collet Capacity (mm): 2.00
Maximum Collet Capacity (mm): 20.00
Maximum Collet Capacity (Decimal Inch): 0.7874
Overall Length (Decimal Inch):,4.2700
Actuator Type: Wrench
Type: ER Coolant Collet
Nose Diameter (Decimal Inch): 1.9700
Balanced to (RPM): 25000
TIR (Decimal Inch): 0.0002
Coolant Type: Through-Spindle
Collet Nut Diameter (Decimal Inch): 1.9700
