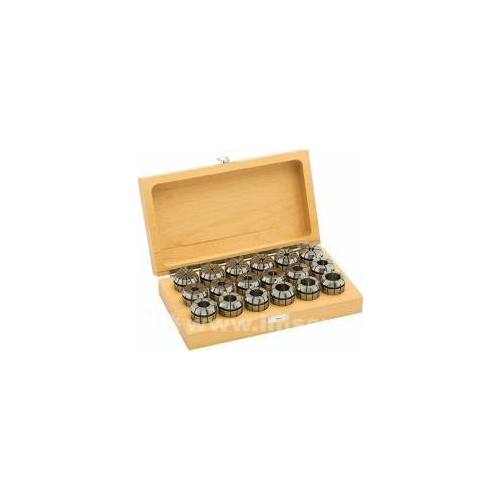

PARLEC 5UMER32-SM018 COLLETSETER32(5UM)3-20MM(18PIECES)
Starting At: $1,329.05
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: 5UMER32-SM018
IMS Product Code: 1742220
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER32
Number of Pieces: 18
Minimum Collet Capacity (mm): 3.00
Minimum Collet Capacity (Decimal Inch): 0.1181
Maximum Collet Capacity (mm): 20.00
Maximum Collet Capacity (Decimal Inch): 0.7874
Size Increments (Decimal Inch): 0.0394
Size Increments (mm): 1.00
TIR (Decimal Inch): 0.000200
Size 1 (mm): 3.00; 4.00; 5.00; 6.00; 7.00; 8.00; 9.00; 10.00; 11.00; 12.00; 13.00; 14.00; 15.00; 16.00; 17.00; 18.00; 19.00; 20.00
Size 1 (Decimal Inch): 0.1181; 0.1575; 0.1969; 0.2362; 0.2756; 0.3150; 0.3543; 0.3937; 0.4331; 0.4724; 0.5118; 0.5512; 0.5906; 0.6299; 0.6693; 0.7087; 0.7480; 0.7874
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
