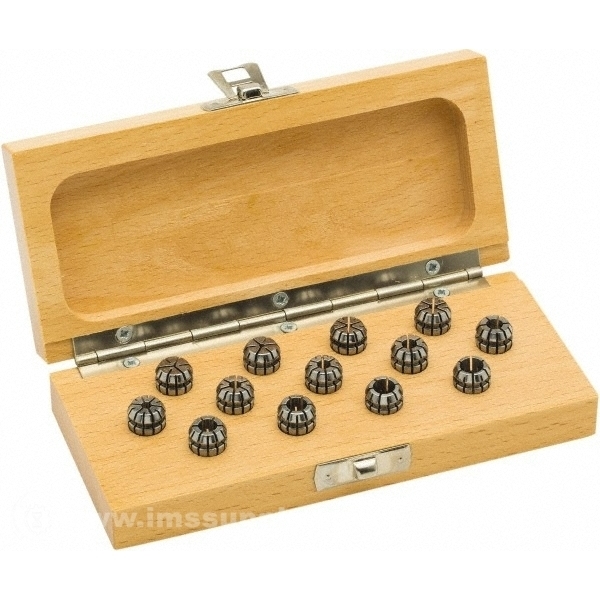

PARLEC 5UMER11-SM013 COLLET SET ER11 1MM-7MM X .5MM
Starting At: $893.95
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: 5UMER11-SM013
IMS Product Code: 1742120
Packaging: Sold Individually
Description:
Collet System: ER
Collet Series: ER11
Number of Pieces: 13
Minimum Collet Capacity (mm): 1.00
Minimum Collet Capacity (Decimal Inch): 0.0394
Maximum Collet Capacity (mm): 7.00
Maximum Collet Capacity (Decimal Inch): 0.2756
Size Increments (Decimal Inch): 0.0197
Size Increments (mm): 0.50
TIR (Decimal Inch): 0.000200
Size 1 (mm): 1.00; 1.50; 2.00; 2.50; 3.00; 3.50; 4.00; 4.50; 5.00; 5.50; 6.00; 6.50; 7.00
Size 1 (Decimal Inch): 0.0394; 0.0591; 0.0787; 0.0984; 0.1181; 0.1378; 0.1575; 0.1772; 0.1969; 0.2165; 0.2362; 0.2559; 0.2756
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 30 Days
