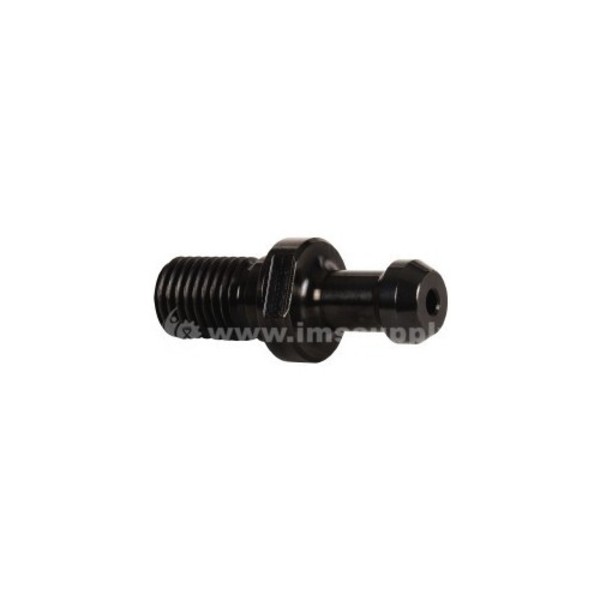

PARLEC 5003TRKC TOOL RETENTION KNOB
Starting At: $52.25
Quick Overview
Manufactured By: PARLEC
Manufacturer Part Number: 5003TRKC
IMS Product Code: 1742574
Packaging: Sold Individually
Description:
Type: Standard
Taper Size: BT50
Thread Size: M24x3
Angle Radius (Degree): 45.00
Knob Diameter (Decimal Inch): 0.9040
Style: C
Through Coolant: Through Coolant
Coolant Hole Diameter (Decimal Inch): 0.2500
Neck Diameter (Decimal Inch): 0.6670
Pilot Diameter (Decimal Inch): 0.9830
Overall Length (Decimal Inch): 3.3400
Knob to Flange Length (Decimal Inch): 1.7700
Flange Thickness (Decimal Inch): 0.3900
