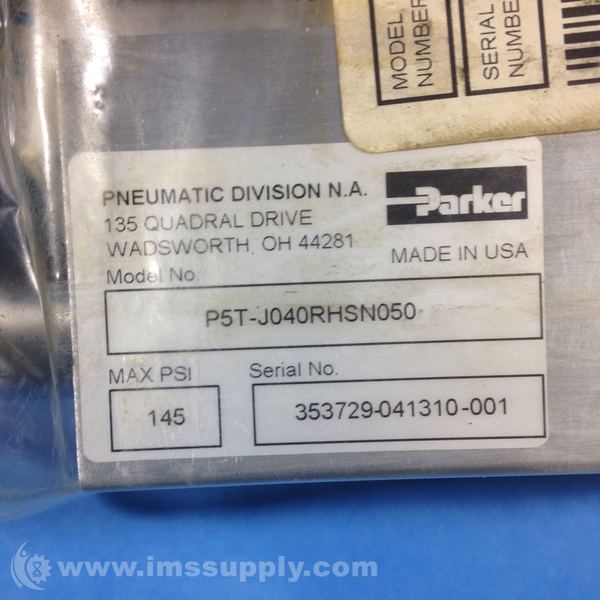

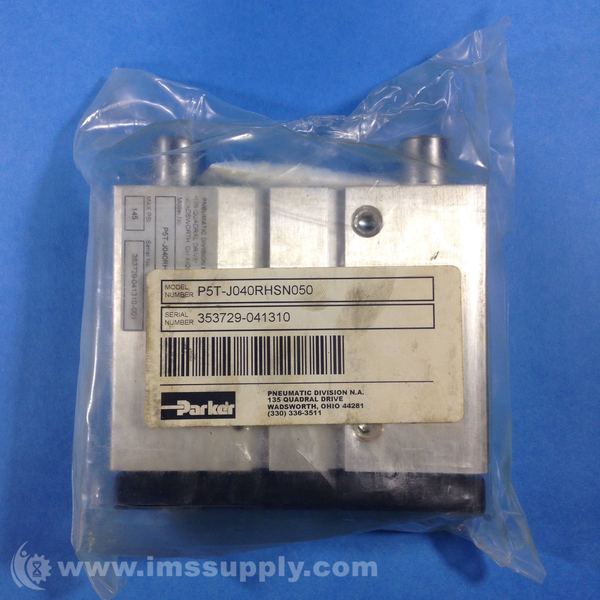

PARKER P5T-J040RHSN050 PNEUMATIC GUIDED CYLINDER SLIDE
Starting At: $257.03
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: P5T-J040RHSN050
IMS Product Code: 1735437
Packaging: Sold Individually
Sold Individually
Box of 2
Description:
Parker P5T-J040RHSN050 Pneumatic Guided Cylinder Slide
Specifications:
- Cylinder Type: Guided
- Cylinder Action: Double Acting
- Bore Size: 16mm | 20mm | 25mm | 32mm | 40mm | 50mm | 63mm | 80mm | 100mm
- Maximum Stroke (mm): 200
- Maximum Stroke (inch): 8
- Extend Stroke Thrust (N): 120 to 4712 (at 6 bar)
- Retract Stroke Thrust (N): 90 to 4418 (at 6 bar)
- Port Size: M5 | 1/8 | 1/4 | 3/8
- Maximum Working Pressure (bar): 10
- Maximum Working Pressure (psi): 145
- Operating Temperature (C): -18 to +74 (Standard) | -18 to +121 (High)
- Operating Temperature (F): 0 to +165 (Standard) | 0 to +250 (High)
- Position Sensing: Groove Mounted
- Mounting Option: Yes
- Piston Rod Material: Stainless Steel Piston Rod
- Body Material: Anodized Aluminium
- End Cap Material: Anodized Aluminium
- Body Type: Extrusion
- Corrosion Resistant Option: Yes
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged PARKER P5T-J040RHSN050 PNEUMATIC GUIDED CYLINDER SLIDE. Contact us today for details.
Repair Time Estimates Provided In Quote
