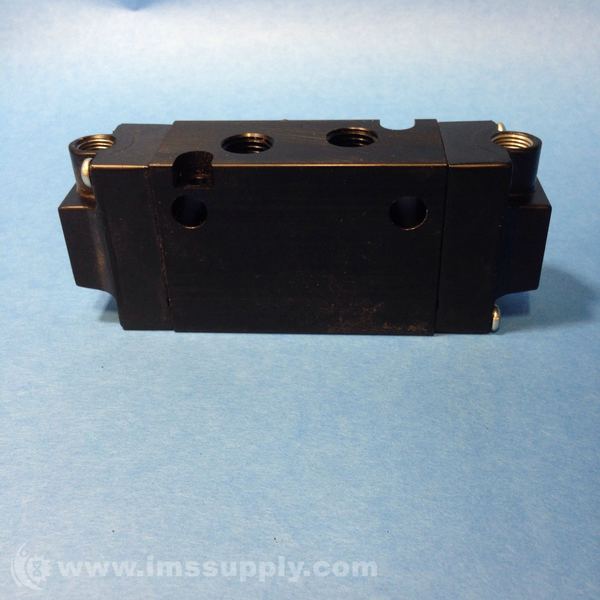

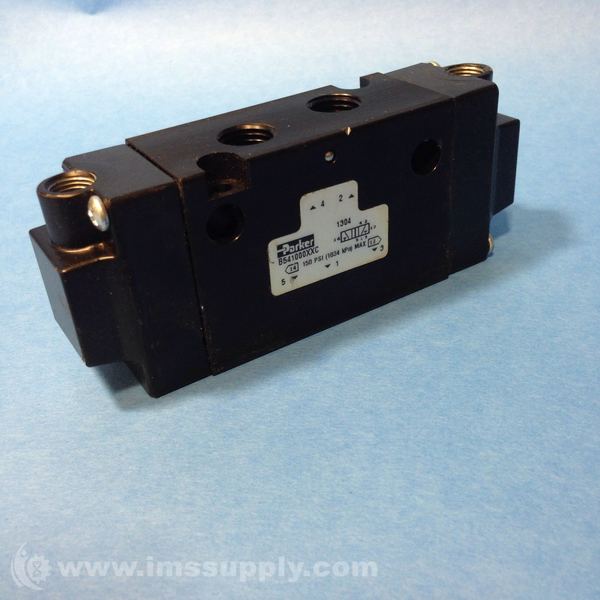

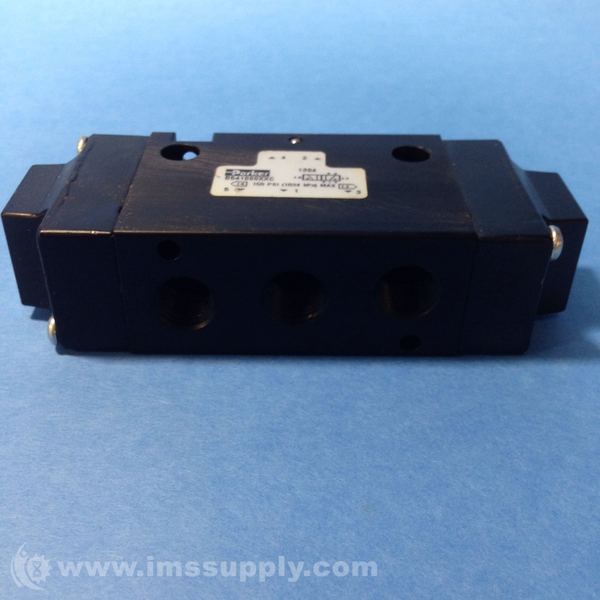

PARKER B541000XXC VALVE AIR PILOT 2 POLE
Quick Overview
Manufactured By: PARKER
Manufacturer Part Number: B541000XXC
IMS Product Code: 1747361
Packaging: Sold Individually
Description:
Parker B541000XXC Valve Air Pilot 2 Pole
- Port: 1/4 NPT
- CV Factor: 1.4
- Operator Type Detail: Double
- Basic Series: B5 - B5 Series
- Operator function: 4 - Double remote pilot, 2-position
- Port Size / Thread Type: 1 - 1/4" NPT inline
- Pilot Source / Pilot Exhaust: 0 - None, remote pilot valve
- Overrides: 0 - None. Remote pilot valve
- Enclosure / lead length: 0 - None, remote pilot valve
- Voltage: XX - Remote pilot - M5 or valve less solenoid
- Options: Blank - None
- Engineering level: C - Current
- Series: B
- Pneumatic Valve Type: Inline Valve
- Port Inch/BSP: NPT
- Valve Passages: 4-way
- Valve Positions: 2-position
- Supply Pressure Range: Vacuum to 145 PSIG (Vacuum to 10 bar)
- Operator Type: Air Piloted
- Operating Temperature: -15°C to 49°C (5°F to 120°F)
