PANASONIC ST4-A1-J02 SINGLE BEAM THRUBEAM SAFETY SENSOR 200MM
Starting At: $252.53
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: ST4-A1-J02
IMS Product Code: 1976264
Packaging: Sold Individually
Description:

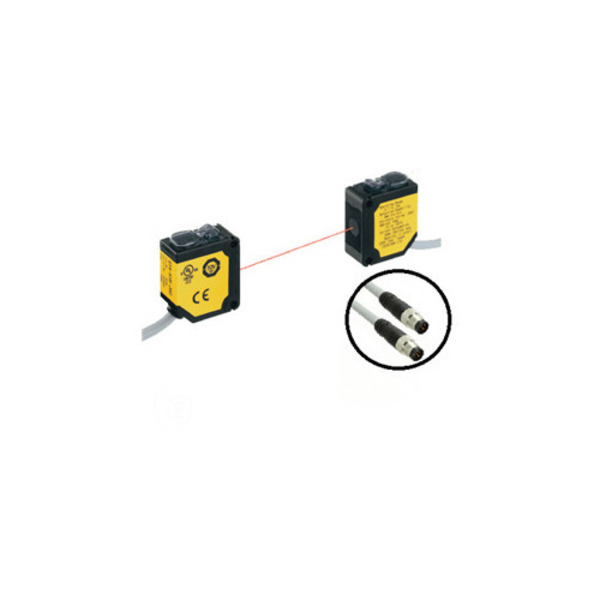

Panasonic ST4-A1-J02 Single Beam Thrubeam Safety Sensor 200mm, Quick Disconnect, ST4 Series Thrubeam Sensor Set, Includes Emitter and Detector, 200mm QD Cable Connection, 0.1 to 15M Range
Specifications:
- Series: ST4
- Light Curtain Type & Style: Type 4-Compact Single Beam
- Protection Type: Single Beam
- Number of Beams: 1 beam channel
- Beam Pitch: Single Beam
- Minimum Detectable Object: Ø 9mm
- Protection Height: Single Beam
- Operation Range: 0.1 to 15 meters
- Features: Up to 6 sensors in series per controller. Three patterns of muting control function.
- Light Source: Infrared LED
- Effective Aperture: ±2.5° or less
- Safety Rated Control Outputs: NPN/PNP x 2
- Safety Control Output Response Time: OFF response: <25 ms, ON response: <90 ms (auto reset) / <140 ms (manual reset)
- Temperature: –10 to +55 °C
- Protection: IP67
- Construction: PBT enclosure, acrylic Lens/Indicator cover
- Connection Type: QD Pigtail
- Connection Type Detail: Select ST4 Extension Cable
- Item Weight: 0.75 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
