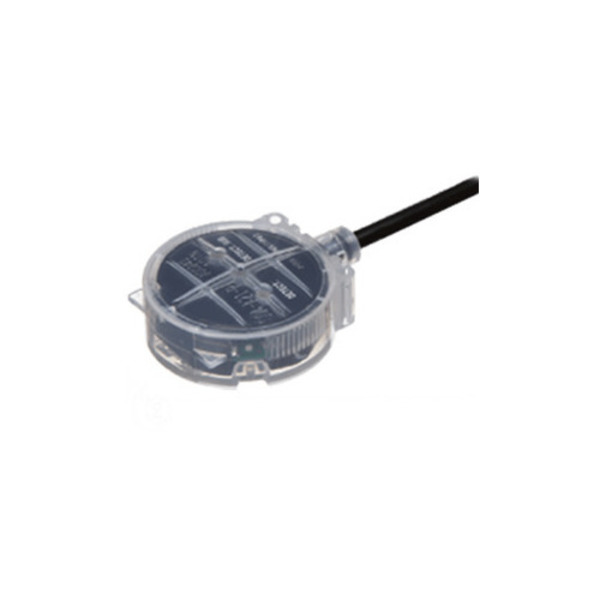

PANASONIC SQ4-A21-P SAFETY STANDARD LIQUID LEAK SENSOR - PNP
Starting At: $217.43
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SQ4-A21-P
IMS Product Code: 1976251
Packaging: Sold Individually
Description:
Panasonic SQ4-A21-P Safety Standard Liquid Leak Sensor - PNP, SQ4 Series, Meets Category 4, PLe, SIL3 When Used with SQ4-C11 Safety Controller, Meets Category 1, PLc, SIL1 When Used Without A Controller, Polypropylene Enclosure Insures Reliable Leak Detection Of Water, Etc., Requires 12 to 24 VDC, With Dual Channel Two-Stage PNP Output, Output Signals For Both Incipient And Abnormal Liquid Leak Volumes, 2m PVC Connection Cable, Does Not Include MS-SQ4 Mounting Bracket (Order Separately), Does Not Include Connectors for Use With SQ4-C11 Controller
Specifications:
- Series: SQ4
- Sensing Type: Liquid leak detection sensors
- Features: For leak detection of standard liquids such as water etc. Two-stage detection addresses both incipient liquid leaks and abnormal liquid leaks using separate outputs
- Sensing Source: Infrared LED
- Supply Voltage: DC
- Supply Voltage Details: 12 to 24VDC
- Control Output: PNP x 2
- Control Output Mode: Out 1: On when no liquid present, OFF when leakage detected or wrong installation. Out 2: ON when normal condition, OFF when initial detection or accidental leakage
- Response Time: Out 1: 10ms, Out 2: 50ms
- Operating Temperature: -10 to +55° C
- IP Rating: IP67, IP65
- Enclosure Details: Polypropylene
- P) Connection Details: PVC cabtyre 2 meter
- Item Weight: 0.25 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
