PANASONIC SL-N15 S-LINK ADDRESSABLE BIN PIC
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SL-N15
IMS Product Code: 1975461
Packaging: Sold Individually
Description:

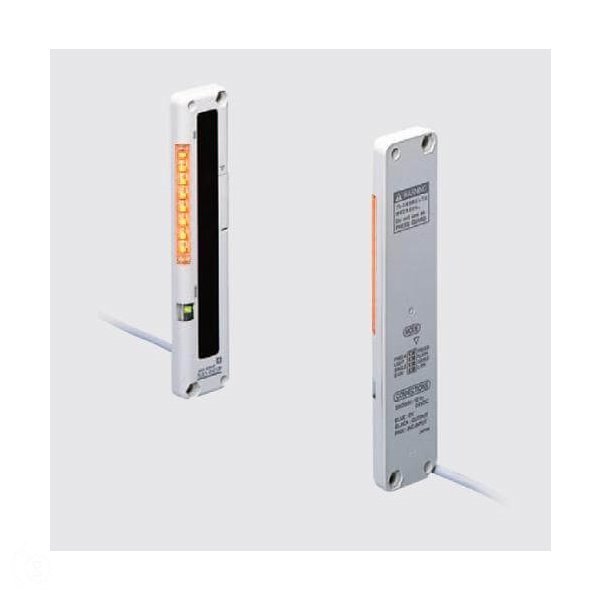

Panasonic SL-N15 S-LINK Addressable Bin Pic
It is a parts-taking verification sensor with five sensing beams and can be hooked up to the S-LINK cable without any interface.
Both the emitter and the receiver are incorporated with bright orange LED job indicators that are easily visible to the operator.
Specifications:
- Directly connectable to S-Link Series system
- 100 mm sensing height
- 35 mm min detectable object
- 0.2 to 3 m sensing distance
- Sensing range: 0.2 to 3 m (0.656 to 9.843 ft) or 0.05 to 1 m (0.164 to 3.281 ft) when the switch is set to SHORT
- Beam pitch: 25 mm (0.984 in)
- Sensing height: 100 mm (3.937 in)
- Sensing object: ø35 mm (ø1.378 in) or more opaque object
