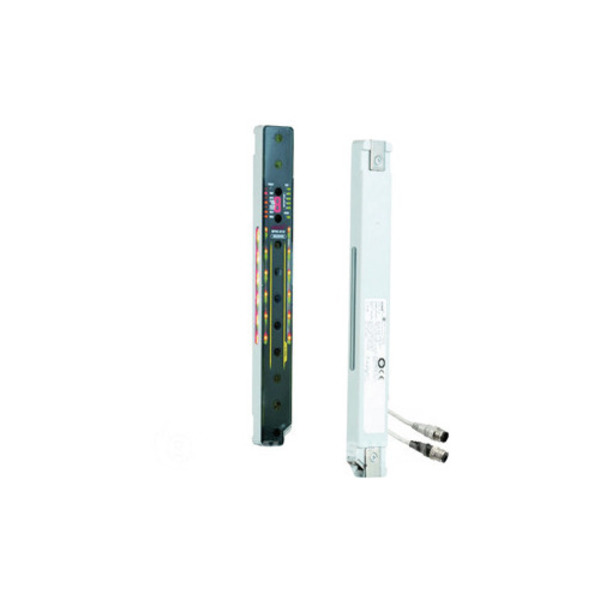

PANASONIC SF4C-F47-J05SF4C SERIES ULTRA-SLIM LIGHT CURTAIN
Starting At: $1,795.95
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF4C-F47-J05
IMS Product Code: 1973510
Packaging: Sold Individually
Description:
Panasonic SF4C-F47-J05SF4C Series Ultra-Slim Light Curtain, Category 4 Protection 10mm Beam Spacing, Switch Selectable NPN/PNP Output, 47 Beam Channels Provide 480mm Protection Height, 0.1 To 3m Sensing Distance, 500mm Long Molded Pigtail Connection, 5m Cable
Specifications:
- Series: SF4C
- Light Curtain Type & Style: Type 4-Ultra-Slim
- Protection Type: Finger
- Number of Beams: 47 beam channels
- Beam Pitch: 10mm
- Minimum Detectable Object: Ø 14mm
- Protection Height: 480mm
- Operation Range: 0.1 to 3 meters
- Features: Solid choice for light-duty assembly machines. Only 13.2mm Thick! Large bright multi-purpose LED indicators
- Light Source: Infrared LED
- Effective Aperture: ±2.5° or less
- Safety Rated Control Outputs: NPN/PNP x 2
- Safety Control Output Response Time: OFF response 9 ms or less, ON response 90 ms or less
- Voltage Details: 24VDC +10%/-15% Ripple P-P 10% or less
- Temperature: –10 to +55 °C
- Protection: IP67, IP65 (IEC)
- Construction: Polycarbonate alloy enclosure and sensing surface
- Connection Type: QD Pigtail
- Connection Type Detail: Select SF4C Extension Cable
- Item Weight: 1.90 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
