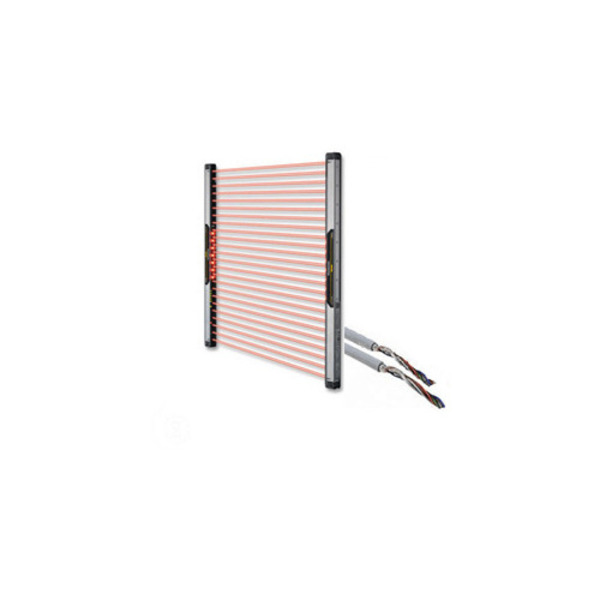

PANASONIC SF4B-A12C TYPE 4 CURTAIN ARM TYPE 503MM
Starting At: $1,067.63
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF4B-A12C
IMS Product Code: 1972272
Packaging: Sold Individually
Description:
Panasonic SF4B-A12C Type 4 Curtain Arm Type 503MM Class 4 Compact Light Curtain 503.4mm Protection Height Arm/foot Type, Compact Plastic Body With Metal Inner Frame For Durability And Stability, Large Multipurpose Indicator, 45% Lighter For Easy Installation And Mounting, 5 Meter Prewired Cable Version With Flying Leads, Brackets Sold Separately
Specifications:
- Series: SF4B-C
- Light Curtain Type & Style: Type 4-Compact, Light Weight
- Protection Type: Arm/Foot
- Number of Beams: 12 beam channels
- Beam Pitch: 40mm
- Minimum Detectable Object: Ø 45mm
- Protection Height: 503.4mm
- Operation Range: 0.3 to 7 meters
- Features: Slim body 20W x 27D, large orange multi-purpose LED indicator for a variety of indication applications
- Light Source: Infrared LED
- Effective Aperture: ±2.5° or less
- Safety Rated Control Outputs: NPN/PNP x 2
- Safety Control Output Response Time: OFF response: 14 ms or less, ON response 80 to 90 ms
- Voltage Details: 24VDC ±10% Ripple P-P 10% or less
- Temperature: –10 to +55 °C
- Protection: IP65 IEC
- Construction: Double structure of a “plastic body” with a “metal inner frame”
- Connection Type: Cabled
- Connection Type Detail: Integral Cable 5 meter
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
