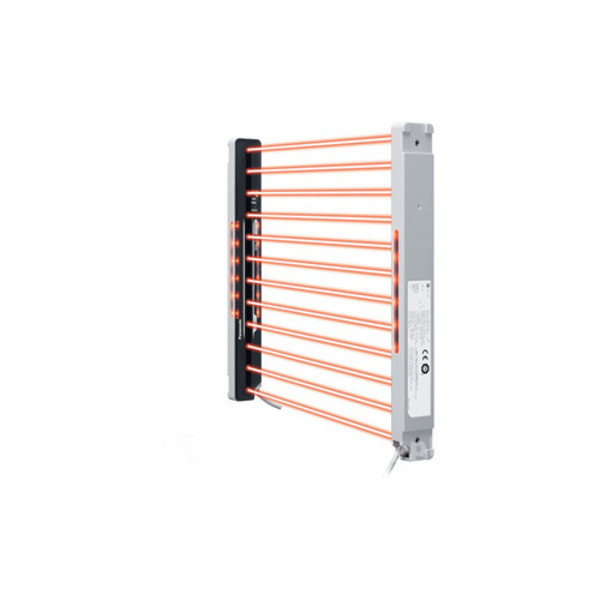

PANASONIC SF2C-H28-P ULTRA-SLIM TYPE 2 LIGHT CURTAIN SENSOR
Starting At: $1,321.13
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF2C-H28-P
IMS Product Code: 1972254
Packaging: Sold Individually
Description:
Panasonic SF2C-H28-P Ultra-Slim Type 2 Light Curtain Sensor, 20mm Beam Pitch Hand Protection 560mm Height PNP Output, 0.1 to 3 Meter Operation Range, 25mm Minimum Detectable Object, 24 VDC PNP, 560mm Height Protection, 3 Meter Integral Connection Cable
Specifications:
- Series: SF2C
- Light Curtain Type & Style: Type 2-Ultra-Slim
- Protection Type: Hand
- Number of Beams: 28 beam channels
- Beam Pitch: 20mm
- Minimum Detectable Object: Ø 25mm
- Protection Height: 560mm
- Operation Range: 0.1 to 3 meters
- Features: Only 13.2mm deep! Large bright built-in multi-purpose LED indicators
- Light Source: Infrared LED
- Effective Aperture: ±5° or less
- Safety Rated Control Outputs: PNP x 1
- Safety Control Output Response Time: OFF response: 20 ms or less, ON response: 80 to 100 ms
- Voltage Details: 24VDC ±20% Ripple P-P 10% or less
- Temperature: –10 to +55 °C
- Protection: IP65 (IP67 IEC)
- Construction: Polycarbonate alloy enclosure and sensing surface
- Connection Type: Cabled
- Connection Type Detail :Integral Cable 3 meter
- Item Weight: 1.30 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
