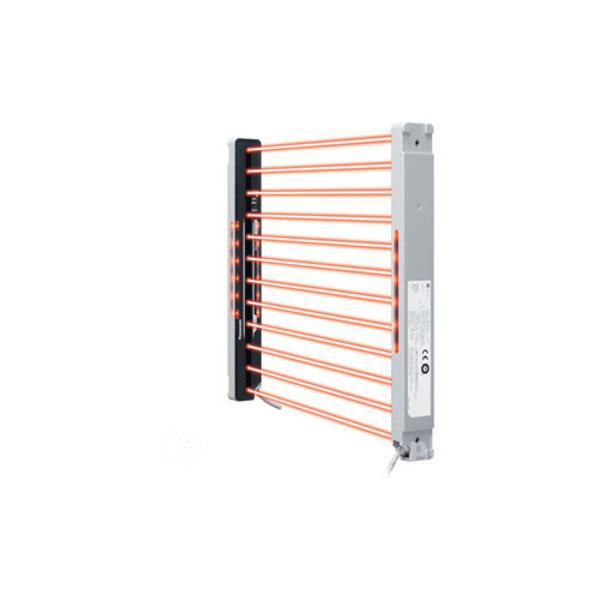

PANASONIC SF2C-H12-N TYPE 2 ULTRA-SLIM LIGHT CURTAIN SENSOR
Starting At: $760.50
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF2C-H12-N
IMS Product Code: 1972229
Packaging: Sold Individually
Description:
Panasonic SF2C-H12-N Type 2 Ultra-Slim Light Curtain Sensor, 20mm Beam Pitch Hand Protection 240mm Height NPN Output, 0.1 to 3 Meter Operation Range, Hand Protection Type 20mm Beam Pitch 25mm Minimum Detectable Object, 24 VDC NPN , 240mm Height Protection, 3 Meter Integral Connection Cable
Specifications:
- Series: SF2C
- Light Curtain Type & Style: Type 2-Ultra-Slim
- Protection Type: Hand
- Number of Beams: 12 beam channels
- Beam Pitch: 20mm
- Minimum Detectable Object: Ø 25mm
- Protection Height: 240mm
- Operation Range: 0.1 to 3 meters
- Features: Only 13.2mm deep! Large bright built-in multi-purpose LED indicators
- Light Source: Infrared LED
- Effective Aperture: ±5° or less
- Safety Rated Control Outputs: NPN x 1
- Safety Control Output Response Time: OFF response: 20 ms or less, ON response: 80 to 100 ms
- Voltage Details: 24VDC ±20% Ripple P-P 10% or less
- Temperature: –10 to +55 °C
- Protection: IP65 (IP67 IEC)
- Construction: Polycarbonate alloy enclosure and sensing surface
- Connection Type: Cabled
- Connection Type Detail: Integral Cable 3 meter
- Item Weight: 0.76 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
