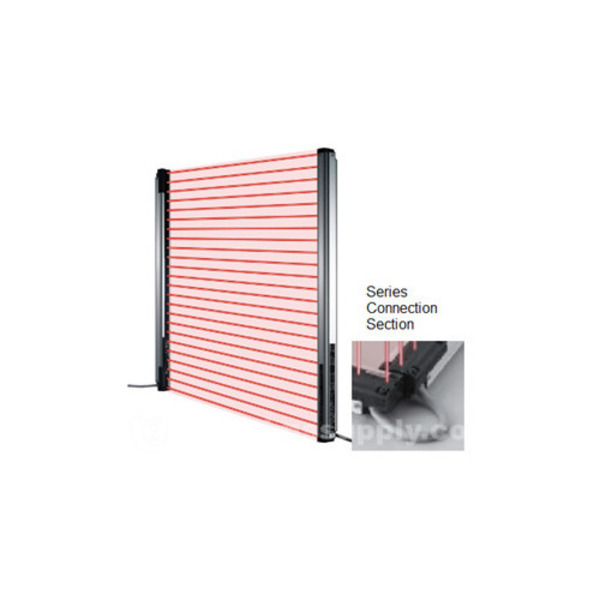

PANASONIC SF2B-A12SL TYPE 2 LIGHT CURTAIN/SERIES CONNECTION
Starting At: $858.98
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: SF2B-A12SL
IMS Product Code: 1971954
Packaging: Sold Individually
Description:
Panasonic SF2B-A12SL Type 2 Light Curtain/Series Connection, Arm/Foot Protect, 40mm Beam Pitch, 472mm Height, 0.2-13 M Range
Specifications:
- Series: SF2B Ver.2
- Light Curtain Type & Style: Type 2-Slim
- Protection Type: Arm/Foot
- Number of Beams: 12 beam channels
- Beam Pitch: 40mm
- Minimum Detectable Object: Ø 47mm
- Protection Height: 472mm
- Operation Range: 2 to 13 meters
- Features: Slim body 28W x 24D, 2 sub-units can be connected in series
- Light Source: Infrared LED
- Effective Aperture: ±5° or less
- Temperature: –10 to +55 °C
- Protection: IP67
- Construction: Aluminum enclosure, zinc die-cast edges, Polycarbonate-polyester resin inner case, PBT cap
- Connection Type: Bottom Cap for Serial
- Connection Type Detail: Select SF2B Bottom Cap Style
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
