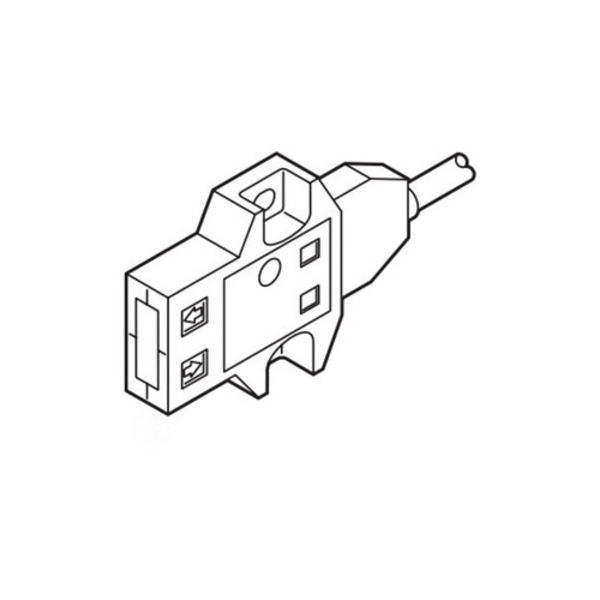

PANASONIC PM2-LH10B-C1 REFLECTIVE PHOTOELECTRIC SENSOR
Starting At: $64.35
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: PM2-LH10B-C1
IMS Product Code: 1973856
Packaging: Sold Individually
Description:
Panasonic PM2-LH10B-C1 Micro Size Diffuse Reflective Photoelectric Sensor - Top Sensing - Dark-On - 1M Cable
Specifications:
- Series: PM2
- Sensing Mode: Convergent - amplifier built-in
- Sensing Distance: 2.5 to 8mm
- Light Source: Infrared LED modulated
- Minimum Detectable Object: ø0.05mm (copper wire)
- Hysteresis: < 20% of sensing distance
- Repeatability: < 0.08mm
- Supply Voltage: 5 to 24VDC
- Current Consumption: < 25mA
- Output: NPN
- Output Mode: Dark-On
- Operation Temperature: –10 to +55 °C
- Enclosure: PBT enclosure. polycarbonate lenses
- Connection Method Details:Cable 1 meter
- Item Weight: 0.01 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Availability: 13 In Stock
Lead Time: 3 to 30 Days
