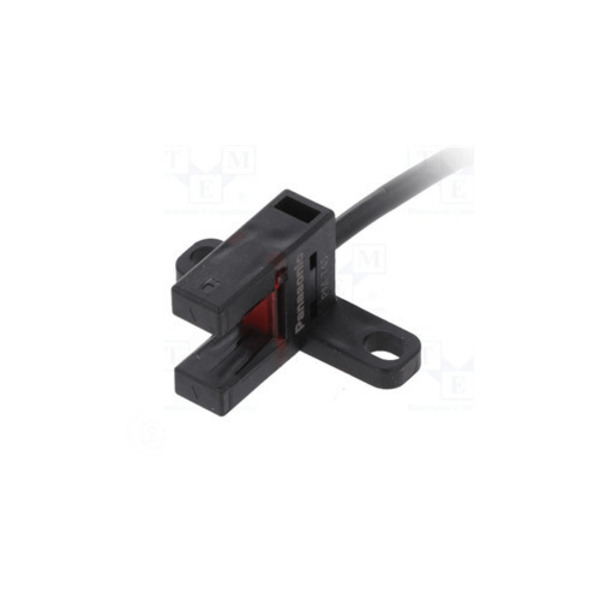

PANASONIC PM-T45-C3 SLOT SENSOR T MOUNT NPN 3M CABLE
Starting At: $17.55
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: PM-T45-C3
IMS Product Code: 1974271
Packaging: Sold Individually
Description:
Panasonic PM-T45-C3 Slot Sensor T Mount NPN 3M Cable
Specifications:
- Series
PM45
- Sensing Mode
Slot sensor - amplifier built-in
- Sensing Distance
6mm
- Light Source
Infrared LED non-modulated
- Minimum Detectable Object
0.8 × 1.2mm opaque object
- Hysteresis
< 0.05mm
- Repeatability
< 0.01mm
- Supply Voltage
5 to 24VDC
- Current Consumption
< 15mA
- Output
NPN x 2
- Output Mode
LIght-On and Dark-On
- Response Time Details
Under light received condition: 20µs or less Under light interrupted condition: 80µs or less
- Operation Temperature
–25 to +55 °C
- IP Rating
IP64
- Enclosure
PBT enclosure, polycarbonate display section
- Connection Method Details
Cable 3 meter
- Item Weight
0.07 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
