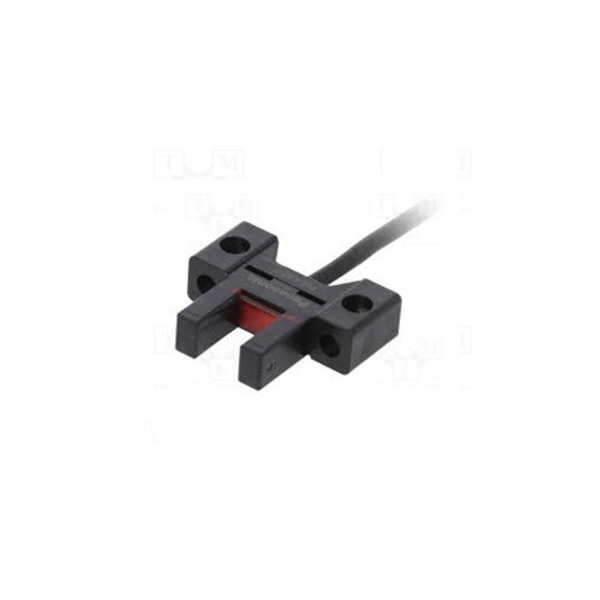

PANASONIC PM-K25-R SLOT SENSOR K MOUNT NPN 1M ROBOT CABLE
Starting At: $16.58
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: PM-K25-R
IMS Product Code: 1973971
Packaging: Sold Individually
Description:
Panasonic PM-K25-R Slot Sensor K Mount NPN 1M Robot Cable
Specifications:
- Series: PM25
- Sensing Mode: Slot sensor - amplifier built-in
- Sensing Distance: 6mm
- Light Source: Infrared LED non-modulated
- Minimum Detectable Object: 0.8 × 1.2mm opaque object
- Hysteresis: < 0.05mm
- Repeatability: < 0.01mm
- Supply Voltage: 5 to 24VDC
- Current Consumption: < 15mA
- Output: NPN x 2
- Output Mode: LIght-On and Dark-On
- Response Time Details: Under light received condition: 20µs or less Under light interrupted condition: 80µs or less
- Operation Temperature: –25 to +55 °C
- IP Rating: IP64
- Enclosure: PBT enclosure, polycarbonate display section
- Connection Method Details: Cable high-flex 1 meter
- Item Weight: 0.04 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
