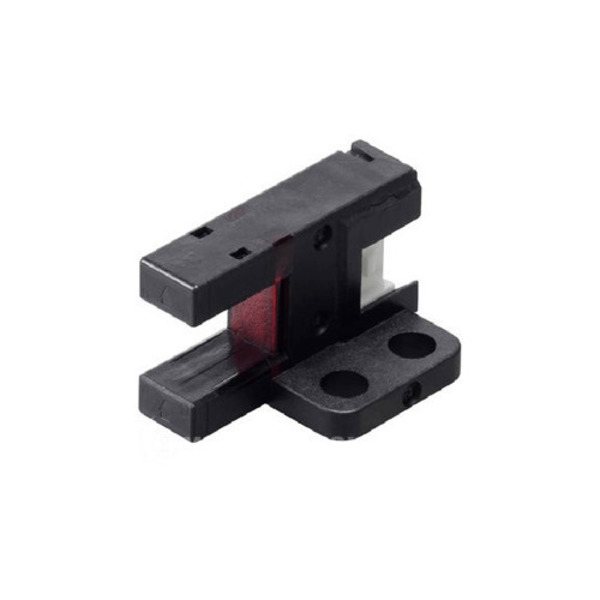

PANASONIC PM-F65W-P COMPACT SLOT SENSOR
Starting At: $11.70
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: PM-F65W-P
IMS Product Code: 1973947
Packaging: Sold Individually
Description:
Panasonic PM-F65W-P Compact Slot Sensor - F Mount Type - PNP - 4 Pin Connector - Same Mounting Hole Dimensions as Previous Model PM-*64(P)-P
Specifications:
- Series: PM65
- Sensing Mode: Slot sensor - amplifier built-in
- Sensing Distance: 6mm
- Light Source: Infrared LED non-modulated
- Minimum Detectable Object: 0.8 × 1.2mm opaque object
- Hysteresis: < 0.05mm
- Repeatability: < 0.01mm
- Supply Voltage: 5 to 24VDC
- Current Consumption: < 15mA
- Output: PNP x 2
- Output Mode: LIght-On and Dark-On
- Response Time Details: Under light received condition: 20µs or less Under light interrupted condition: 80µs or less
- Operation Temperature: –25 to +55 °C
- IP Rating: IP64
- Enclosure: PBT enclosure, polycarbonate display section
- Connection Method Details: Use CN-14A series
- Item Weight: 0.01 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
