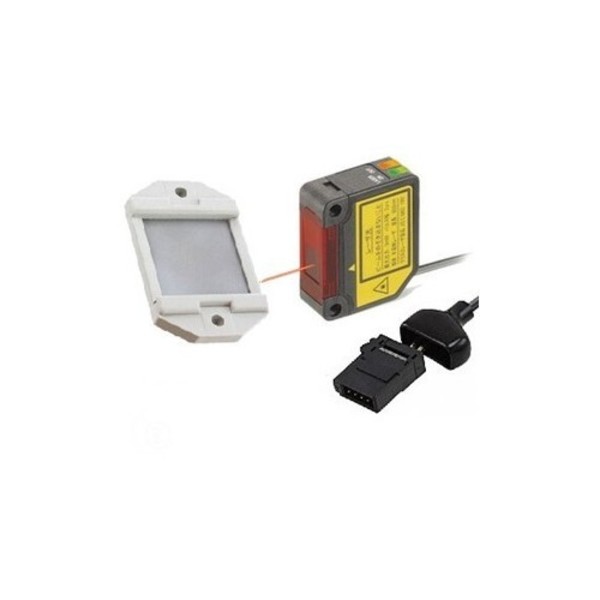

PANASONIC LS-H91F-A RETRO REFLECTIVE LASER WITH COAXIAL BEAM
Starting At: $325.65
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: LS-H91F-A
IMS Product Code: 1975132
Packaging: Sold Individually
Description:
Panasonic LS-H91F-A Retro Reflective Laser with Coaxial Beam, Up to 5M Sensing Distance, Class I Laser, 2 Meter Cable, Requires LS-400 Series Amplifier – Sold Separately
Specifications:
- Series: LS-400
- Sensing Mode: Retro-reflective Coaxial
- Sensing Mode Features: Polarized - Opaque & Translucent Target Detection
- Sensor Body Type: Compact
- Sensor Body Feature: Side Screw Mounting
- Sensor Type: Amplifier Separate Type
- Sensitivity Setting Type: Push Button Teach
- Display Type: Digital Display Remote Amp
- Sensor Features: Amp separate retro-reflective laser sensing head with coaxial beam for tight laser beam, use in locations with small openings and gaps. Use with LS-400 style digital amplifer. Digital ampifier features dual LED display pushbutton and remote threshold settings.
- Laser Beam Spot Size: ø 1mm
- Laser Light Source Details: Red Semiconductor laser - Class 1 FDA, 655nm
- Laser Output: 1 mW
- Supply Voltage Details: 12 to 24 VDC Separate Amp
- Setting Distance: 200mm to 7 meter
- Control Output: NPN or PNP
- Output Details: 2 each NPN or PNP per Amplifier selected
- Output Operation Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, acrylic lens cover
- Temperature Rating: -10º to +55º C
- Protection Rating: IP40
- Connection Type: Quick Disconnect
- Connection Detail: Cable 2m with Fixed Connector
- Item Weight: 0.20 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
