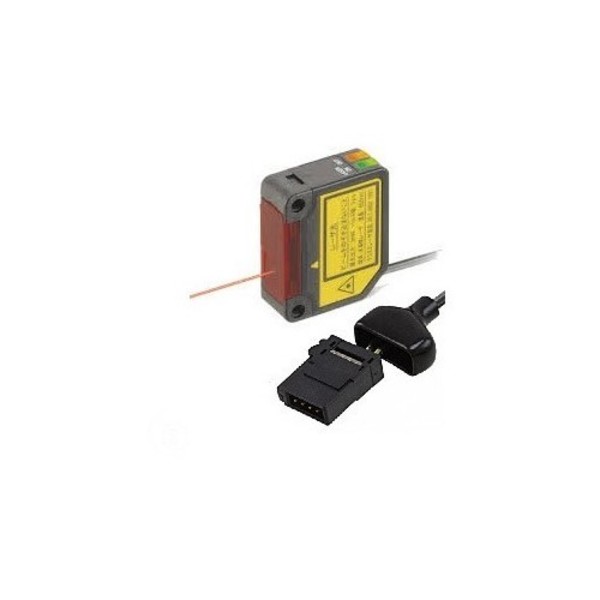

PANASONIC LS-H21F-A DIFFUSE LASER SENSOR
Starting At: $341.25
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: LS-H21F-A
IMS Product Code: 1975115
Packaging: Sold Individually
Description:
Panasonic LS-H21F-A Diffuse Laser Sensor, Up to .5 Sensing Distance, Class I Laser, 2 Meter Cable, Spot Size Adjust Potentiometer, Requires LS-400 Series Amplifier – Sold Separately, Mounting Brackets Sold Separately, 2 Meter Cable
Specifications:
- Series: LS-400
- Sensing Mode: Diffuse
- Sensing Mode Features: Opaque & Translucent Target Detection
- Sensor Body Type: Compact
- Sensor Body Feature: Side Screw Mounting
- Sensor Type: Amplifier Separate Type
- Sensitivity Setting Type: Push Button Teach
- Display Type: Digital Display Remote Amp
- Sensor Features: Amp separate diffuse laser sensing head with multi-turn adjuster for beam spot control. Use with LS-400 style digital amplifer. Digital ampifier features dual LED display pushbutton and remote threshold settings.
- Laser Beam Spot Size: ø 0.2mm
- Laser Light Source Details: Red Semiconductor laser - Class 1 FDA, 655nm
- Laser Output: 1 mW max
- Supply Voltage Details: 12 to 24 VDC Separate Amp
- Setting Distance: 30mm to 500mm
- Control Output: NPN or PNP
- Output Details: 2 each NPN or PNP per Amplifier selected
- Output Operation Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, acrylic lens cover
- Temperature Rating: -10º to +55º C
- Protection Rating: IP40
- Connection Type: Quick Disconnect
- Connection Detail: Cable 2m with Fixed Connector
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
