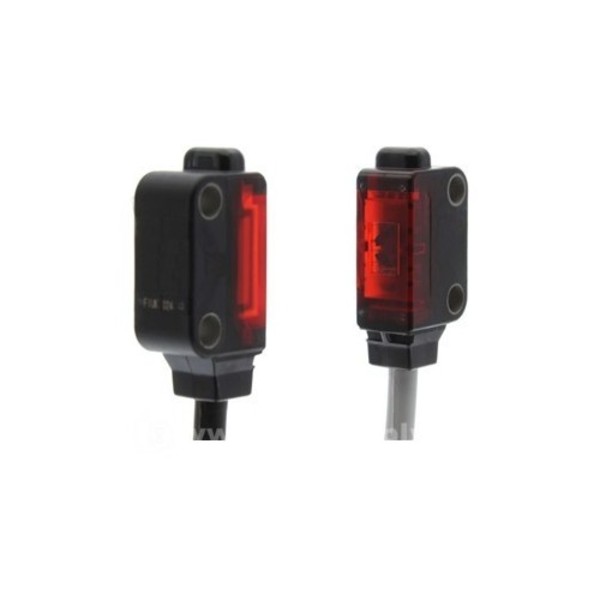

PANASONIC LS-H102 THRUBEAM LASER SENSOR, SQUARE SHAPED
Starting At: $296.40
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: LS-H102
IMS Product Code: 1975099
Packaging: Sold Individually
Description:
Panasonic LS-H102 Thrubeam Laser Sensor, Square Shaped, 1M Sensing Distance, 2 Meter Cable IP67 Rated, Designed To Be Use With The LS-501 Laser Amplifier
Specifications:
- Series: LS-500
- Sensing Mode: Thrubeam
- Sensing Mode Features: Opaque & Translucent Target Detection
- Sensor Body Type: Miniature
- Sensor Body Feature: Side Screw Mounting
- Sensor Type: Amplifier Separate Type
- Sensitivity Setting Type: Push Button Teach
- Display Type: Digital Display Remote Amp
- Sensor Features: Amp separate thrubeam laser sensing head in a ultra small rectangular shape. 1 meter distance with Ø5mm laser beam spot. Use with LS-500 style digital amplifer.Digital Amplifier features red LED display and include external input, 4-20ma output, 2-digital ouputs and timing modes.
- Laser Beam Spot Size: ø 5mm
- Laser Light Source Details: Red Semiconductor laser - Class 1 FDA, 660nm
- Laser Output: 2 mW
- Supply Voltage Details: 12 to 24 VDC Separate Amp
- Setting Distance: 1 meter
- Control Output: Analog, NPN or PNP
- Output Details: 4-20mA and 2 each NPN or PNP per Amplifier selected
- Output Operation Mode: Light-On/Dark-On selectable
- Construction: PBT enclosure, glass acrylic
- Temperature Rating: -10º to +55º C
- Protection Rating: IP67
- Connection Type: Quick Disconnect
- Connection Detail: Cable 2m with Fixed Connector
- Item Weight: 0.20 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
