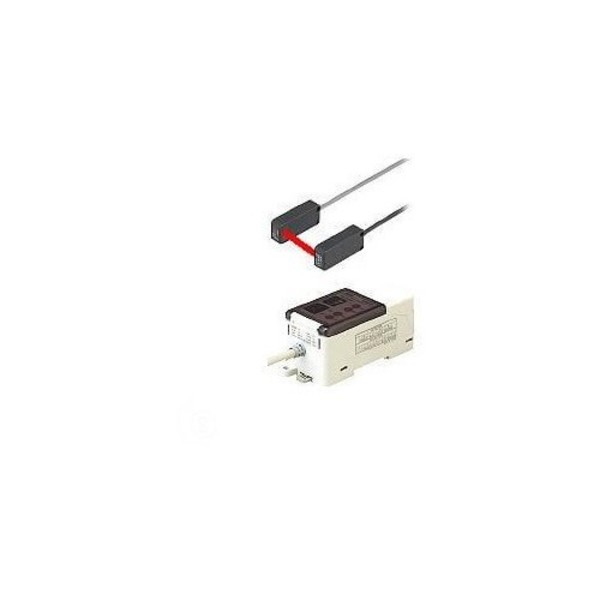

PANASONIC LA-305 THRUBEAM LED COLLIMATED BEAM SENSOR HEAD
Starting At: $965.25
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: LA-305
IMS Product Code: 1973249
Packaging: Sold Individually
Description:
Panasonic LA-305 Thrubeam LED Collimated Beam Sensor Head, Compact Size Sensor Head – 18W X 40H X 10D (mm), 5mm Wide Beam At 300mm Distance, 0.05mm Minimum Detectable Object (opaque), 2m Hook-up Cable, This Sensor Head Must Be Used With A Panasonic (formerly Sunx) LA-A1 Type Amplifier (not Included), The LA-A1 Amplifier Provides NPN Or PNP Output With 1 To 5 Volt Analog
Specifications:
- Series: LA300
- Sensing Mode: LED Thrubeam Array
- Self-Contained or Amp-Separate: Sensor Less Controller
- Sensing Beam: Visible Red LED Beam
- Beam Details: Red LED wavelength 650nm, modulated
- Optical Method: Thrubeam - Edge, Gap, & Diameter sensing
- Optical Beam Type: Collimated beam Array Thrubeam
- Beam Size: 5mm
- Measurement Range: 300mm
- Repeat Accuracy: 10µm
- Measurement Range: 0 to 300mm
- Supply Voltage Details: 12 to 24VDC
- Fastest Sample Rate: 0.5ms
- Best Response Time: 0.5ms
- Controller Features: 15-turn potentiometer adjustment for High & Low Comparative outputs. Analog output 1 to 5VDC (8 V/ms slew rate)
- Sensor Features: Ultra-slim body for edge, gap, and diameter sensing
- Control Output & Communication: Digital, Analog
- Digital Output Details: 2 each NPN
- Analog Output Details: 1 to 5VDC
- Operating Temperature: –10 to +40° C
- Material: Heat-resistant ABS enclosure, glass front cover
- Connection Type: Cable
- Connection Method: 2 meter cable
- Item Weight: 0.32 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
