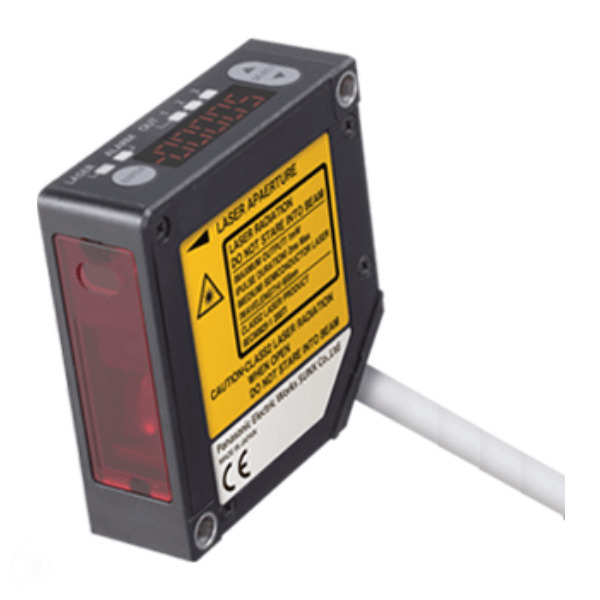

PANASONIC HL-G125-A-C5 LASER DISPLACEMENT SENSOR
Starting At: $1,068.60
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: HL-G125-A-C5
IMS Product Code: 1973332
Packaging: Sold Individually
Description:
Panasonic HL-G125-A-C5 Laser Displacement Sensor - Standard Type - 250 ±150 mm Range - 20 µm Resolution - 1.75 x 3.5 mm Beam Diameter
Specifications:
- 250mm ±150mm measurement range, with 0.5µm resolution
- CMOS image sensor with 0.1 × 0.1mm beam diameter
- 24VDC supply voltage, three independent outputs – NPN/PNP selectable
- Four selectable sampling rates from 200micro seconds to 2ms
- Analog output includes both 0 to 10VDC and 4 to 20mA
- 5 meter cable with fyling leads
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
