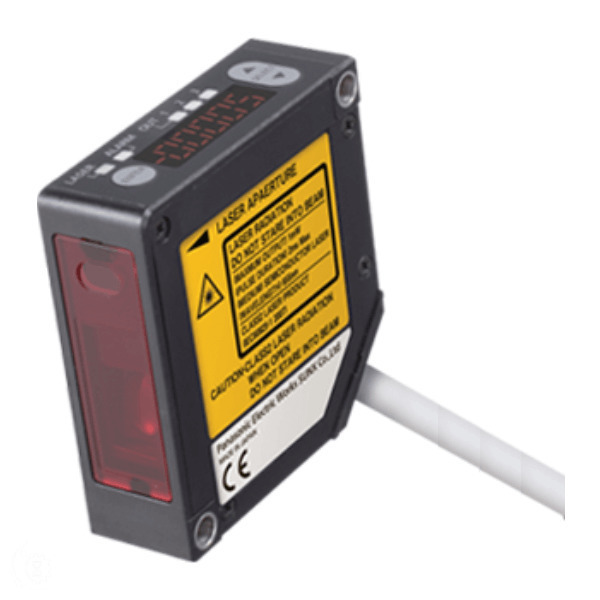

PANASONIC HL-G108-A-C5 LASER DISPLACEMENT SENSOR
Starting At: $1,004.25
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: HL-G108-A-C5
IMS Product Code: 1973306
Packaging: Sold Individually
Description:
Panasonic HL-G108-A-C5 Laser Displacement Sensor - Standard Type - 85 ±20 mm Range - 2.5 µm Resolution
Specifications:
- 85mm ±20mm measurement range, with 2.5micron resolution
- CMOS image sensor with 0.75 × 1.25mm beam diameter
- 24VDC supply voltage
- three independent outputs – NPN/PNP selectable
- Four selectable sampling rates from 200micro seconds to 2ms
- Analog output includes both 0 to 10VDC and 4 to 20mA
- 5 meter connection cable for hook-up
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
