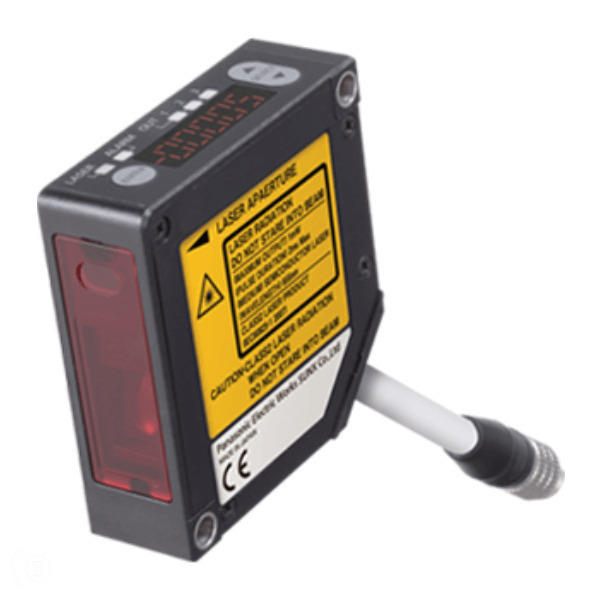

PANASONIC HL-G103-S-J LASER DISPLACEMENT SENSOR
Starting At: $1,109.55
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: HL-G103-S-J
IMS Product Code: 1973294
Packaging: Sold Individually
Description:
Panasonic HL-G103-S-J Laser Displacement Sensor - High Function Type - 30 ±4 mm Range - 0.5 µm Resolution
Specifications:
- High functionality type with RS-422 or RS-485 serial communication
- 30mm ±4mm measurement range with 0.5micron resolution
- CMOS image sensor with 0.1 × 0.1mm beam diameter
- 24VDC supply voltage
- three independent outputs – NPN/PNP selectable
- Four selectable sampling rates from 200micro seconds to 2ms
- Analog output includes both 0 to 10VDC and 4 to 20mA
- .5 meter pigtail with multi-pin connector for hook-up (use Panasonic (formerly Sunx) HL-G1CC ext cable)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
