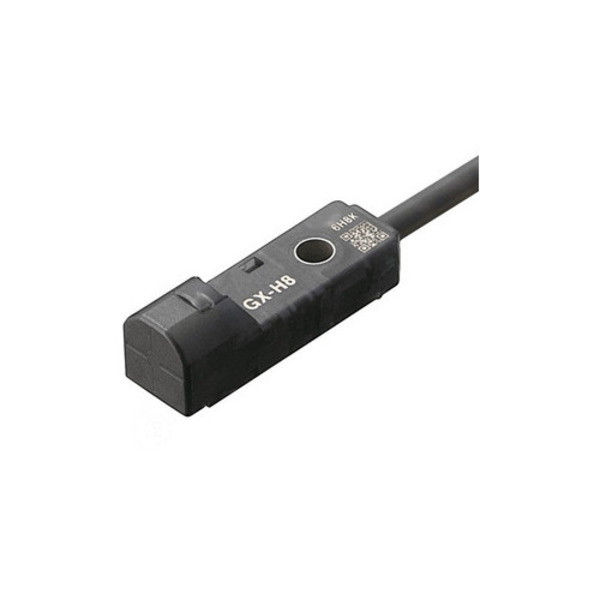

PANASONIC GX-H8AI-C5 INDUCTIVE PROXIMITY SENSOR
Starting At: $39.00
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: GX-H8AI-C5
IMS Product Code: 1972386
Packaging: Sold Individually
Description:
Panasonic GX-H8AI-C5 Inductive Proximity Sensor, Rectangular Shaped, 8mm Wide, Top Sense, NPN Normally Open, 5m Cable, Varied Frequency Type, 12-24VDC Input Voltage Supply
Specifications:
- Series: GX-F/H
- Proximity Type: Micro-Size Rectangular/Square
- Features: Provides stable sensing with excellent temperature characteristics and shock rating of 1,000 G. “ I ” in the model No. indicates a different frequency type.
- Supply Voltage: DC 3-Wire
- Power Supply Details: 12 to 24VDC
- Sensing Face Width: 8mm
- Housing Type: Non-metallic
- Housing Material Details: PBT enclosure, polyester indicator
- Sensing Direction: Top Sensing
- Mounting Type: Single thru-hole mount
- Sensing Range: a 0 to 2.9mm
- Max Operation Distance: 2.5mm
- Repeatability: <0.04 mm
- Hysteresis: <20%
- Response Frequency: 500 Hz
- Output Type: NPN
- Output Details: NO
- Protection: IP68
- Temperature Range: -25 to +70º C
- Item Weight: 0.02 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
