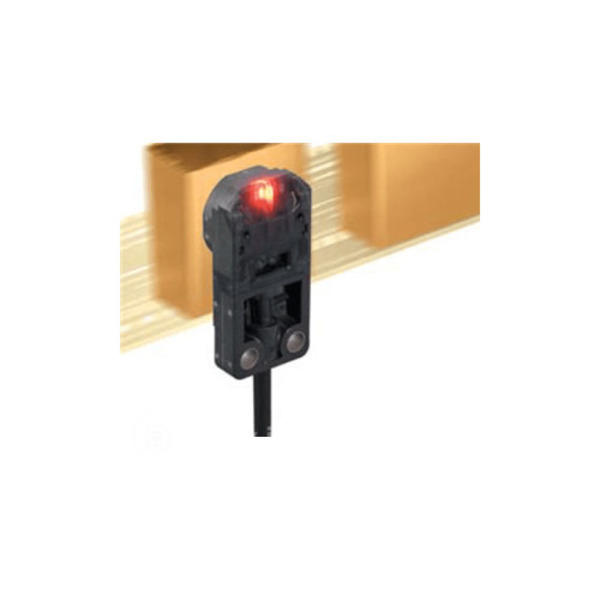

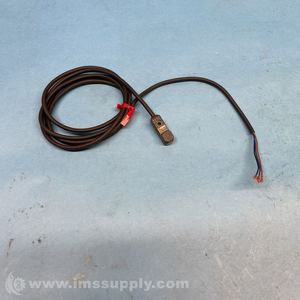

PANASONIC GX-FL15BI PANASONIC SQ IND PROX 15MM FRONT NPN-NC
Starting At: $43.88
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: GX-FL15BI
IMS Product Code: 1971045
Packaging: Sold Individually
Description:
Panasonic GX-FL15BI Panasonic/Formerly SUNX Rectangular Inductive Proximity Sensor 15mm Front Sensing Type NPN-NC Output, Varied Frequency Type, 1 Meter Cable
Specifications:
- Series: GX-F/H
- Proximity Type: Micro-Size Rectangular/Square
- Features: Provides stable sensing with excellent temperature characteristics and shock rating of 1,000 G. “ I ” in the model No. indicates a different frequency type.
- Supply Voltage:DC 3-Wire
- Power Supply Details:12 to 24VDC
- Sensing Face Width:15mm
- Housing Type:Non-metallic
- Housing Material Details:PBT enclosure, polyester indicator
- Sensing Direction:Front Sensing
- Mounting Type:Two thru-hole mount
- Sensing Range:c 6mm to 8.9mm
- Max Operation Distance: 8.0mm
- Repeatability: <0.04 mm
- Hysteresis: <20%
- Response Frequency: 150 Hz
- Output Type: NPN
- Output Details: NC
- Protection: IP68
- Temperature Range: -25 to +70º C
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
