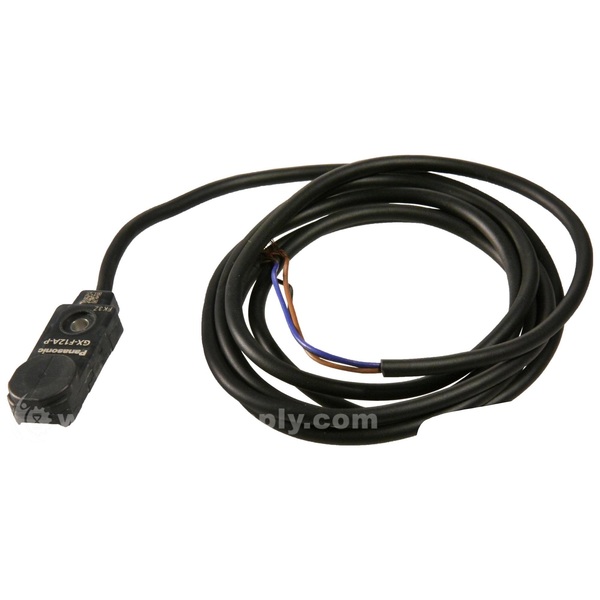

PANASONIC GX-F12A-P, INDUCTIVE PROXIMITY SENSOR
Starting At: $28.28
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: GX-F12A-P
IMS Product Code: 1761963
Packaging: Sold Individually
Description:
Panasonic GX-F12A-P, Inductive Proximity Sensor, Rectangular, GX-F Series, Stable, 4 mm, PNP, 12 to 24 V, Pre-Wired
The GX-F12A-P is a rectangular-shaped Inductive Proximity Sensor with PNP open-collector transistor output. It offers normally open output operation, front sensing and 4mm maximum sensing range. Thorough adjustment and control of sensing sensitivity greatly reduces individual sensor differences and variations. The work of adjusting sensor positions when using multiple sensors and when sensors have been replaced is much easier. The new integrated construction method used provides shock resistance of 10000m/s² and vibration resistance clears durability tests of between 10 and 500Hz.
- Can be installed with ample space
- Environmental resistance
- Highly resistant to water or oil
- Indicators are easy to see over a wide field of view
- Tightening strength increased with no damage
- Conductor thickness doubled to make wiring much easier
- Sensing Range Max: 4mm
- Thread Size - Metric: -
- Sensor Output: PNP
- Supply Voltage DC Min: 12V
- Supply Voltage DC Max: 24V
- Product Range: GX-F Series
