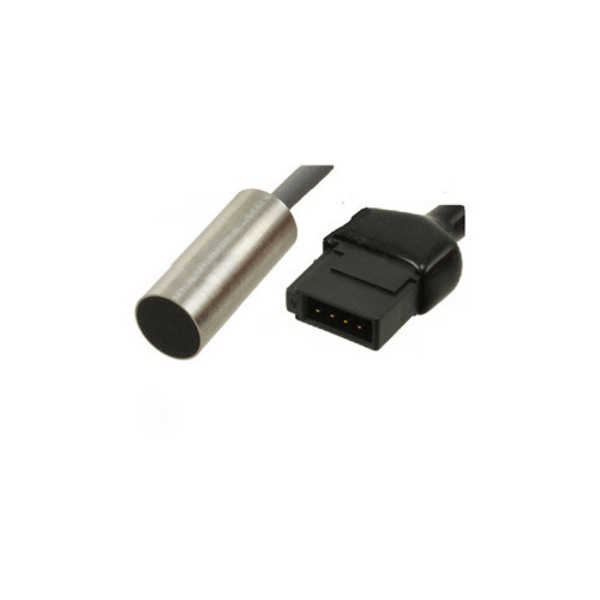

PANASONIC GH-8SE HIGH-ACCURACY INDUCTIVE PROXIMITY SENSOR HEAD
Starting At: $100.43
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: GH-8SE
IMS Product Code: 1976909
Packaging: Sold Individually
Description:
Panasonic GH-8SE High-Accuracy Inductive Proximity Sensor Head, Ø8mm 4.0mm Max Distance 1µm Repeatability, Use With GA-311 Amplifier, 18-turn Manual Adjust Distance Setting Amplifier Provides Fine Tuning, High Performance Of 3.3 kHz Response Frequency, Labor-saving One-touch Sensor Head To Amplifier Connection, Ø8 SUS Sensing Head, 4.0mm Maximum Sensing Distance, 4µm Hysterisis, IP67 Protection
Specifications:
- Series: GA-311/GH
- Remove Discontinued: Current Series
- Self Contained/Amplifier Separate: Amplifier Separate Type
- Mounting Style: Cylindrical Smooth
- Features: Shielded Type, Must be used with GA-311 style separate amplifier
- Diameter/Size: ø8.0mm
- Material: Metal
- Housing Material Details: SUS303 enclosure, PVC face
- Sensing Direction: End Sensing
- Mounting Type: Shielded/Flush Mounting
- Sensing Range: b 3mm to 5.9mm
- Max Operation Distance: 4.0mm
- Repeatability: <1µm
- Hysteresis: 0.04 mm
- Response Frequency: 3.3 kHz
- Output Type: NPN
- Output Details: NO/NC
- Connection Type: Quick Disconnect
- Connection Details: 3 meter w/ Custom Connector
- Protection: IP67
- Temperature Range: -10 to +70 C
- Item Weight: 0.10 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
