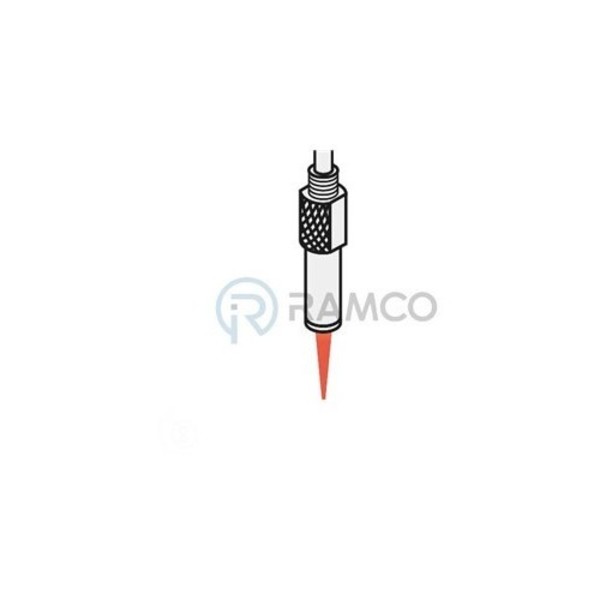

PANASONIC FX-MR6 PINPOINT LENS FOR DIFFUSE FIBERS
Starting At: $71.18
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-MR6
IMS Product Code: 1976889
Packaging: Sold Individually
Description:
Panasonic FX-MR6 Pinpoint Lens for Diffuse Fibers, Ø0.1 Mm Beam Spot, ) Add-on Lens For Fine Spot Detection Of Diffuse Fiber Optic Cables, Enables Detection Of Minute Targets With 0.1 mm To 0.4 mm Beam Spot At Approx. 7 mm Distance, Beam Spot Size Dependent On Particular Fiber Being Used, For Diffuse Fibers With M3 × 0.5 Threaded Tip, Ambient Temperature: –20 To +60 °C (–4 To +140 °F)
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Add-on Lens
- Sensing Mode: Diffuse
- Key Attributes: Axial Sensing
- Mounting Dimension: Ø 4.0 mm / M3 x 0.5 Internal thread
- Fiber Cable Feature: Works with Fiber Cables / (Spot Diameter) FD-EG1 / (Ø 0.1mm), FD-EG30 / (Ø 0.2mm), FD-42G(W) / (Ø 0.4mm), FD-32G(X) / (Ø 0.4mm)
- Temperature Rating: -20 to +60° C
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
