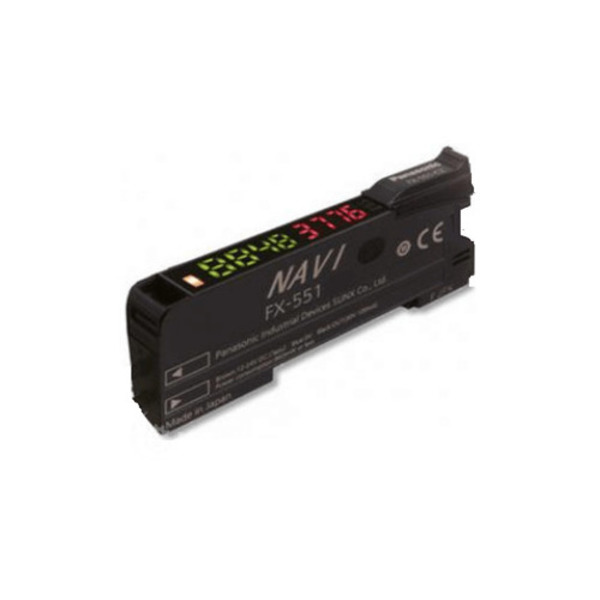

PANASONIC FX-551 FIBER OPTIC HIGH POWER AMPLIFIER
Starting At: $132.60
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-551
IMS Product Code: 1976842
Packaging: Sold Individually
Description:
Panasonic FX-551 Fiber Optic High Power Amplifier, Dual Display NPN Quick Disconnect
Increased Sensing Distance
The sensing range of the standard diffuse reflective type fiber is about 1.6 times longer than that of a conventional product. This adds extra flexibility to the sensor layout.
Simple Threshold Adjustment
The FX-551 Series can easily setup with just a few clicks of the teach button. Threshold can also be easily adjusted while in operation allowing for quick fine tuning of the sensor.
Ambient Light Compensation Function
If the sensor is around bright ambient light the compensation function can be set up to help avoid interference from stray lighting.
Specifications:
- Series: FX-550
- Remove Discontinued: Currrent Model
- Setting Type: PB Teaching
- Setting Type Detail: PB Teach - PB fine adjust
- Display Type: Digital LED Display
- Display Detail: Dual 4-digit Red & Green LED display,LED Status Indicators
- Features: Models are equipped with only basic functions for improved ease of use. No matter which model you select, they are all easy to use.amplifiers can be used as either a main unit or a sub unit. Just use a main cable or a sub cable to distinguish the two. Teaching modes include: 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment
- Amplifier Type: Stand alone, main, sub
- Output Type: NPN
- Output Details: 1 each NPN
- Connection Type: Cable
- Connection Details: Use CN-70 Series Connector/cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 60µs
- Time Delay Option: Multifunction
- Counter Option: No
- Remote Input Feature: No
- Cross Talk Prevention: Up to 4 units
- Protection Rating: IP40
- Item Weight: 0.12 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
