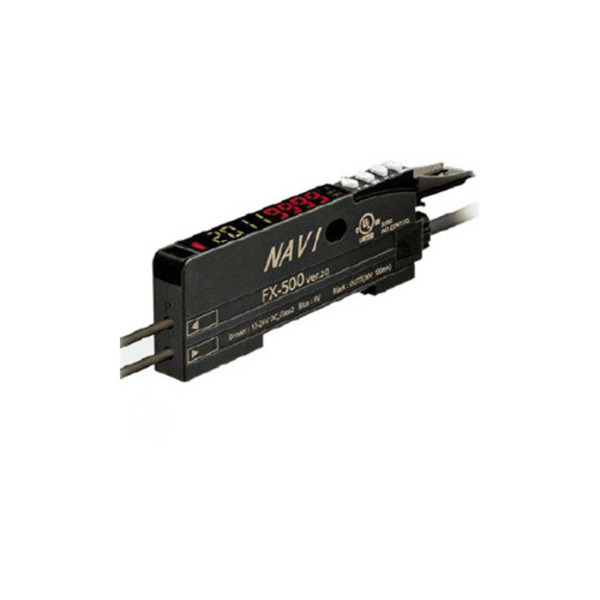

PANASONIC FX-505-C2 FIBER OPTIC AMPLIFIER
Starting At: $223.28
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-505-C2
IMS Product Code: 1976839
Packaging: Sold Individually
Description:
Panasonic FX-505-C2 Fiber Optic Amplifier, 2 Output Type, 2m Attached Cable, NPN, Two Channel Output, 2 To 24 VDC Input, Dual NPN Output With 4 To Ma Current Out, Red LED Light Source, Large Digital Display, Push-button Teach, High Functionality And Simple Programming Operation, Works With All 2.2mm OD Plastic Fiber Cables, 2 Meter Cable With Flying Leads
Specifications:
- Series: FX-500
- Remove Discontinued: Currrent Model
- Setting Type: PB Teaching
- Setting Type Detail: PB Teach - PB fine adjust
- Display Type: Digital LED Display
- Display Detail: Dual 4-digit Red & Green LED display,LED Status Indicators
- Features: When the FX-500 series is used together with our super quality fiber, the incident light intensity variation among units is decreased to only 1/4 of that of conventional models. By being close to absolute values instead of modified digital values, changes in detection that could not be found in the past can now be monitored. FX-500 with its accurate detection catches fractional differences in light intensity, achieving high precision and solving low-hysteresis applications.
- Amplifier Type: Stand alone, main, sub
- Output Type: Analog, NPN
- Output Details: 2 each NPN, 4-20m
- Connection Type: Cable
- Connection Details: 2 Meter Cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 25µs
- Time Delay Option: Multifunction
- Counter Option: No
- Remote Input Feature: Yes
- Cross Talk Prevention: Up to 12 units (Main/Sub)
- Protection Rating: IP40
- Includes: FX-MB1 (amplifier protection seal): 1 set
- Item Weight: 1.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
