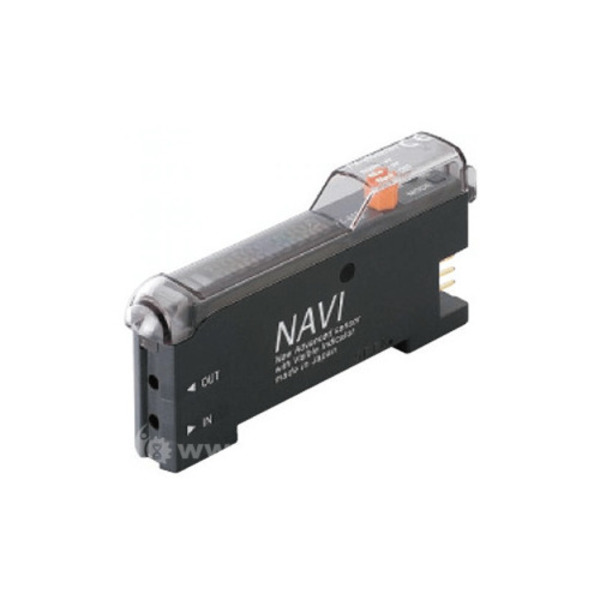

PANASONIC FX-412 DIGITAL FIBER OPTIC SENSOR
Starting At: $160.88
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-412
IMS Product Code: 1976825
Packaging: Sold Individually
Description:
Panasonic FX-412 Digital Fiber Optic Sensor, with Multi-Turn Sensitivity Adjustment Knob, Red LED, NPN, Digital Display Amplifier With Easy To Use Multi-turn Sensitivity Adjuster, Comes With Adjustment Knob That Can Be Adjusted With Fingers, 12 To 24 VDC Input, NPN Output, Red LED Light Source, Requires Panasonic CN-73 Hook-up Cable Which Is Sold Separatel
Specifications:
- Series: FX-410
- Remove Discontinued: Currrent Model
- Setting Type: Manual Adjustment
- Setting Type Detail: Potentiometer Multi-turn
- Display Type: Digital LED Display
- Display Detail: Dual 4-digit Red & Green LED display,LED Status Indicators
- Features: Accurate control of the adjuster threshold values by using numerical values is possible due to the digital display. This allows anybody to perform the same settings. The digital display can be turned upside-down if required, a stability indicator is also provided
- Amplifier Type: Stand alone, main, sub
- Output Type: NPN
- Output Details: 1 each NPN
- Connection Type: Cable
- Connection Details: Use CN-70 Series Connector/cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 150µs
- Time Delay Option: Multifunction
- Counter Option: No
- Remote Input Feature: No
- Cross Talk Prevention: Up to 8 Units (Main/Sub)
- Item Weight: 0.40 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
