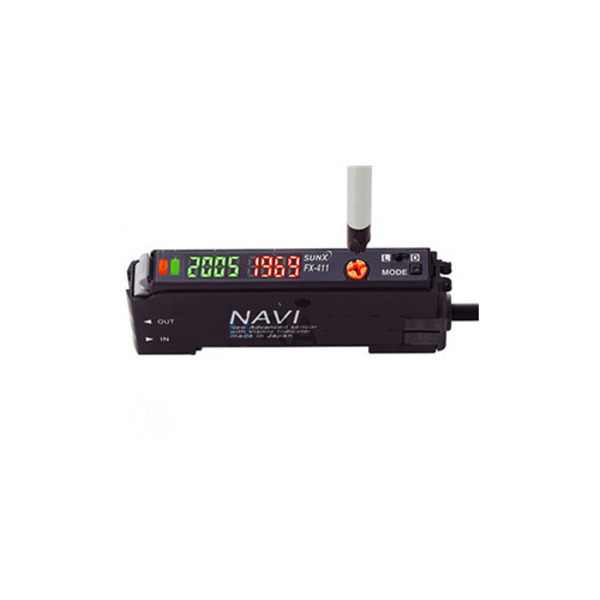

PANASONIC FX-411BP DIGITAL FIBER OPTIC SENSOR
Starting At: $155.03
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-411BP
IMS Product Code: 1976804
Packaging: Sold Individually
Description:
Panasonic FX-411BP Digital Fiber Optic Sensor, Red LED, NPN, Digital Display Amplifier With Easy To Use Multi-turn Sensitivity Adjuster, 12 To 24 VDC Input, Npn Output, Red LED Light Source, Requires Panasonic CnN73 Hook-up Cable Which Is Sold Separately
Specifications:
- Series: FX-410
- Remove Discontinued: Currrent Model
- Setting Type: Manual Adjustment
- Setting Type Detail: Potentiometer Multi-turn
- Display Type: Digital LED Display
- Display Detail: Dual 4-digit Red & Green LED display,LED Status Indicators
- Features: Accurate control of the adjuster threshold values by using numerical values is possible due to the digital display. This allows anybody to perform the same settings. The digital display can be turned upside-down if required, a stability indicator is also provided
- Amplifier Type: Stand alone, main, sub
- Output Type: PNP
- Output Details: 1 each PNP
- Connection Type: Cable
- Connection Details: Use CN-70 Series Connector/cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 150µs
- Time Delay Option: Multifunction
- Counter Option: No
- Remote Input Feature: No
- Cross Talk Prevention: Up to 8 Units (Main/Sub)
- Item Weight: 0.40 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
