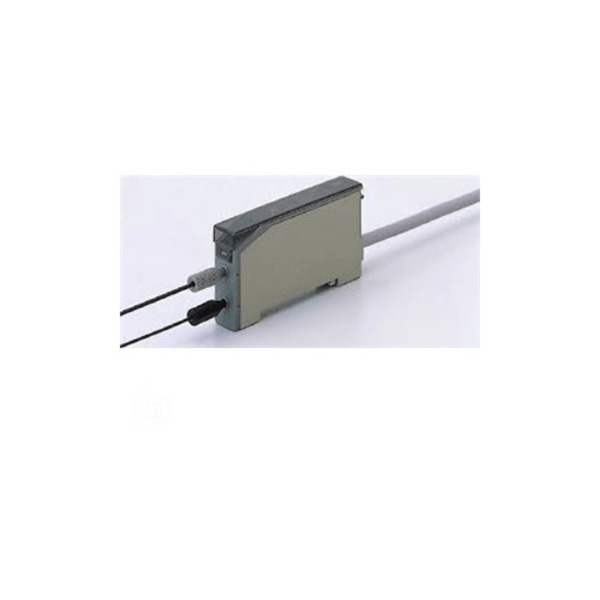

PANASONIC FX-11A FIBER OPTIC AMPLIFIER WITH ANALOG OUTPUT
Starting At: $207.68
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-11A
IMS Product Code: 1975006
Packaging: Sold Individually
Description:
Panasonic FX-11A Fiber Optic Amplifier With Analog Output, Slim Body Fiber Optic, 2 to 24 VDC in 1 to 5 VDC Analog Output, 8-Turn Adjustable Potentiometer, Accepts All Panasonic (formerly Sunx) And Standard 2.2 mm OD Fiber Terminated Fiber Cables, Red LED Light Source, 2 m Connection Cable
Specifications:
- Series: FX-11A
- Remove Discontinued: Discontinued
- Setting Type: Manual Adjustment
- Setting Type Detail: Potentiometer 8-turn
- Display Type: LED Indicators
- Display Detail: LED Status Indicators
- Features: The saturation indicator lights up when the output reaches 5 V. Hence, the sensitivity can be easily adjusted even without using a tester. Moreover, an incident beam indicator which brightens up in proportion to the amount of incident beam (output voltage) is also incorporated. Interference prevention function Saturation indicator Two sets of fibers can be mounted close together or face to face.
- Amplifier Type: Stand alone
- Output Type: Analog
- Output Details: 1-5 Volt
- Connection Type: Cable
- Connection Details: 2 Meter Cable
- Supply Voltage: DC
- Voltage Details: 12 to 24VDC
- Fastest Respose Time: 1 ms
- Time Delay Option: None
- Counter Option: No
- Remote Input Feature: No
- Cross Talk Prevention: 2 Units
- Item Weight: 0.14 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
