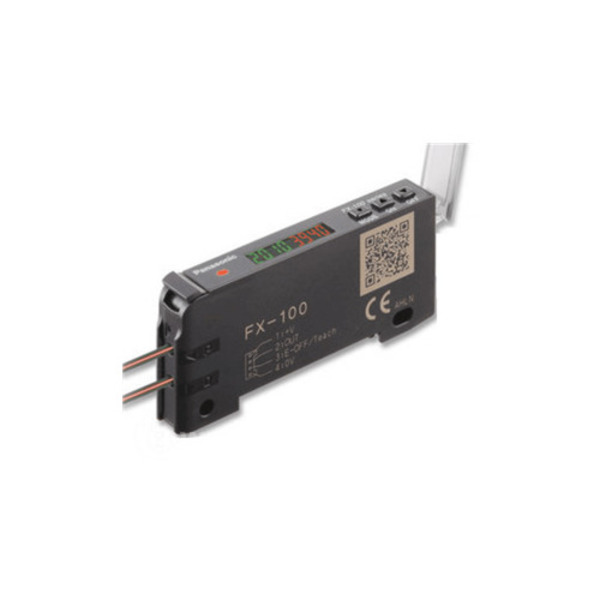

PANASONIC FX-102P-Z LONG SENSING DIGITAL FIBER OPTIC AMPLIFIER
Starting At: $112.13
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FX-102P-Z
IMS Product Code: 1974996
Packaging: Sold Individually
Description:
Panasonic FX-102P-Z Long Sensing Digital Fiber Optic Amplifier, Long Sensing Range, 12 to 24 VDC, NPN Output, DIN Rail Mount, Red LED Light Source, Accepts All Panasonic (formerly Sunx) And Standard 2.2 mm Od Fiber Terminated Fiber Cables, Push-button Or Remote Input Teach, Many Programmable Features Including Time Delay, M8 4 Pin Quick Disconnect (Mating Cable Sold Separately)
Specifications:
- Series: FX-100
- Remove Discontinued: Currrent Model
- Setting Type: PB Teaching
- Setting Type Detail: PB Teach - PB fine adjust
- Display Type: Digital LED Display
- Display Detail: Dual 4-digit Red & Green LED display,LED Status Indicators
- Features: Simply press the ON key when an object is present, and OFF when it is not, and teaching is completed. If the settings are accidentally changed, imputing the code will restore the default settings.
- Amplifier Type: Stand alone
- Output Type: PNP
- Output Details: 1 each PNP
- Connection Type: Quick Disconnect
- Connection Details: M8 4P QD
- Supply Voltage: DC
- Voltage Details: 12 to 24 VDC
- Fastest Respose Time: 250µs
- Time Delay Option: Multifunction
- Counter Option: No
- Remote Input Feature: Yes
- Cross Talk Prevention: Up to 4 units
- Includes: FC-FX-1 Protection Cover Unit
- Item Weight: 0.00 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
