PANASONIC FT-Z802Y THRUBEAM FIBER OPTIC CABLE
Quick Overview
Manufactured By: PANASONIC
Manufacturer Part Number: FT-Z802Y
IMS Product Code: 1974962
Packaging: Sold Individually
Description:
Panasonic FT-Z802Y Thrubeam Fiber Optic Cable, Chemical Resistant, Flat Rectangular Side Sense, 2m R4 High-Flex Cuttable Cable, Rectangular Head – Side Sensing, W7 X H15 X D13, SEMI S2 Compliant, 2 Meter, Free Cut Cable With R25 Bending Radius
Specifications:
- Series: FT/FD/FR
- Key Characteristics: Chemical/Oil-Resistant

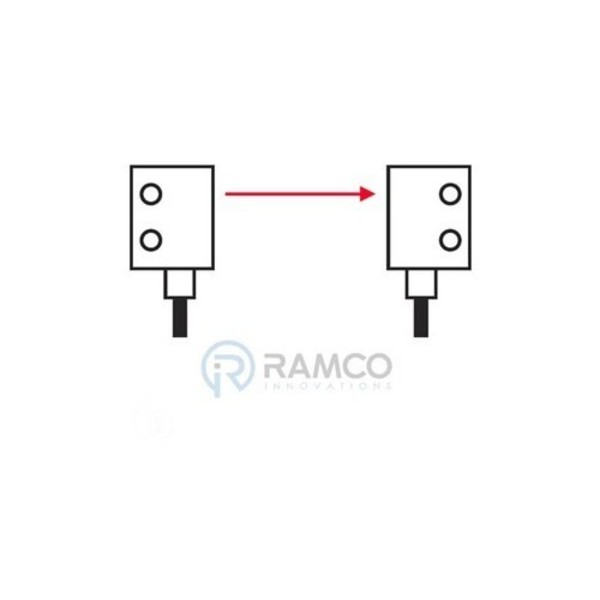

- Sensing Mode: Thrubeam
- Key Attributes: Side-View
- Lens Compatible: Not Compatible With Add-On Lens
- Mounting Body Style: Square/Rectangular
- Mounting Dimension: 15 x 13 x 7mm
- Fiber Cable Feature: Flat Type 2-Screw mounting. Encased Sensor Head and Fiber in Teflon for Full Chemiclal Resistance
- Fiber Cable Bend Radius: R4 High-flex
- Cuttable / Non-Cuttable: Cuttable
- Fiber Length: 2 meter
- Temperature Rating: 0 to +60° C
- Includes: FX-AT3 transclucent orange attachment for Ø2.2mm cuttable fibers, fiber cutter
- Item Weight: 0.20 lbs per EA
